SKU: UCT315

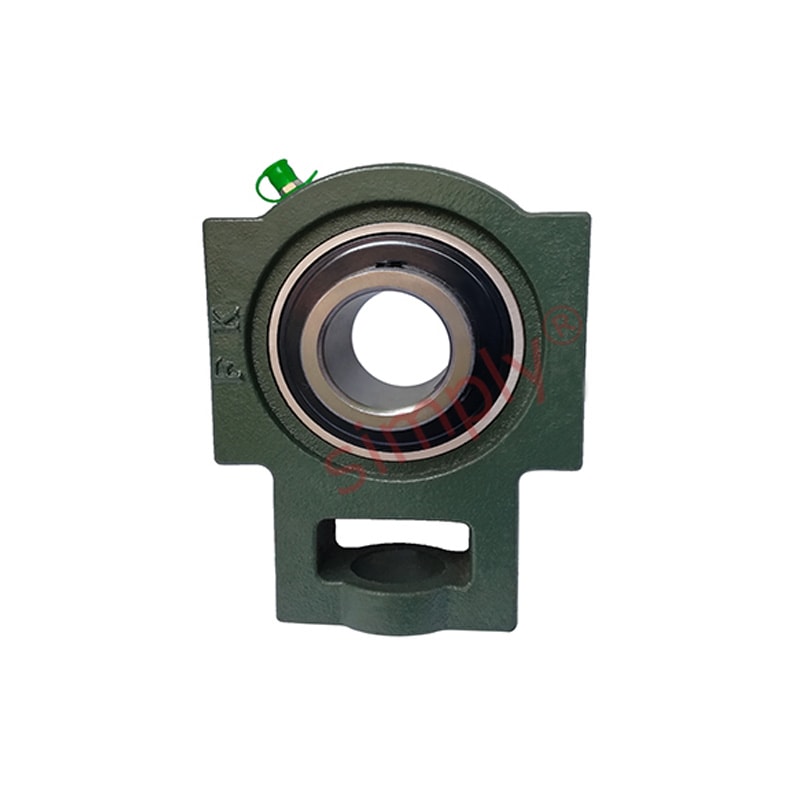

UCT315 Metric Cast Iron Take Up Unit Housing with 75mm Bore Insert
UCT315 Metric Cast Iron Take Up Unit Housing with 75mm Bore Insert
Regular price
€182,30
ex VAT
Regular price
Sale price
€182,30
ex VAT
In stock
Price Break
3+
€138,84
4+
€131,04
9+
€129,48
19+
€127,92
49+
€126,36
99+
€124,80
499+
€117,00
999+
€115,44
1999+
€113,88
2999+
€112,32
4999+
€109,20
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UCT
Technical
Technical
| d | 75mm |
|---|---|
| o | 36mm |
| g | 27mm |
| p | 132mm |
| q | 85mm |
| s | 46mm |
| b | 150mm |
| k | 26mm |
| e | 192mm |
| a | 216mm |
| w | 262mm |
| j | 90mm |
| l | 55mm |
| h | 160mm |
| B | 82mm |
| n | 32mm |
| Bearing no | UC315 |
| Housing no | T315 |
| Weight | 12.7 kg |
