SKU: UCT314

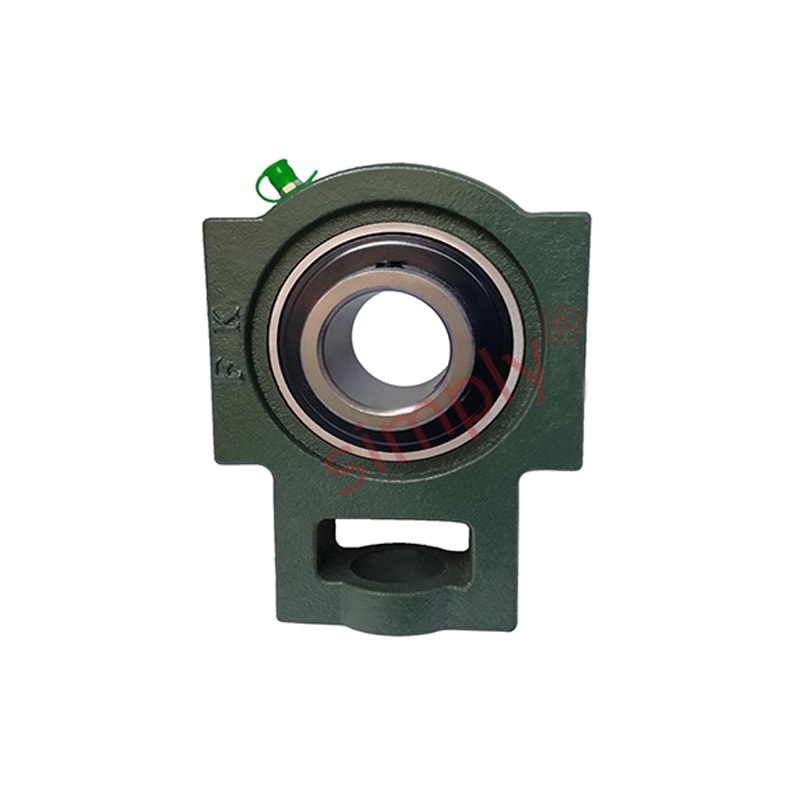

UCT314 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
UCT314 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
Regular price
€123,47
ex VAT
Regular price
Sale price
€123,47
ex VAT
In stock
Price Break
3+
€94,04
4+
€88,76
9+
€87,70
19+
€86,65
49+
€85,59
99+
€84,53
499+
€79,25
999+
€78,19
1999+
€77,14
2999+
€76,08
4999+
€73,97
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCT
Technical
Technical
| d | 70mm |
|---|---|
| o | 36mm |
| g | 27mm |
| p | 130mm |
| q | 85mm |
| s | 46mm |
| b | 140mm |
| k | 26mm |
| e | 180mm |
| a | 202mm |
| w | 252mm |
| j | 90mm |
| l | 52mm |
| h | 155mm |
| B | 78mm |
| n | 33mm |
| Bearing no | UC314 |
| Housing no | T314 |
| Weight | 10.9 kg |
