SKU: UCT310

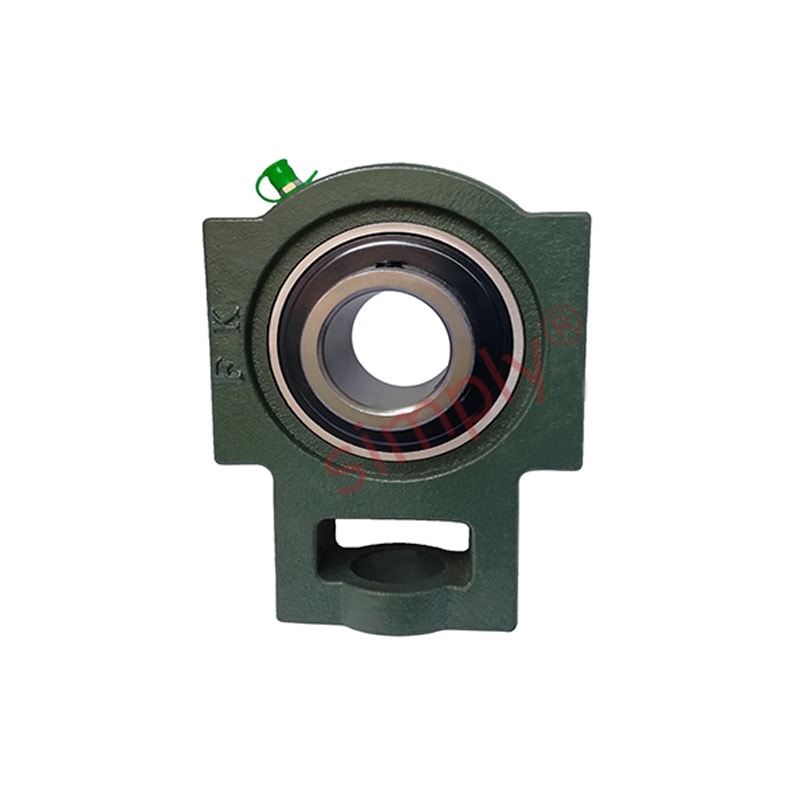

UCT310 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert
UCT310 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert
Regular price
€52,98
ex VAT
Regular price
Sale price
€52,98
ex VAT
In stock
Price Break
3+
€40,35
4+
€38,08
9+
€37,63
19+
€37,18
49+
€36,72
99+
€36,27
499+
€34,00
999+
€33,55
1999+
€33,09
2999+
€32,64
4999+
€31,73
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCT
Technical
Technical
| d | 50mm |
|---|---|
| o | 27mm |
| g | 22mm |
| p | 98mm |
| q | 61mm |
| s | 37mm |
| b | 106mm |
| k | 20mm |
| e | 140mm |
| a | 151mm |
| w | 192mm |
| j | 61mm |
| l | 40mm |
| h | 118mm |
| B | 61mm |
| n | 22mm |
| Bearing no | UC310 |
| Housing no | T310 |
| Weight | 5 kg |
