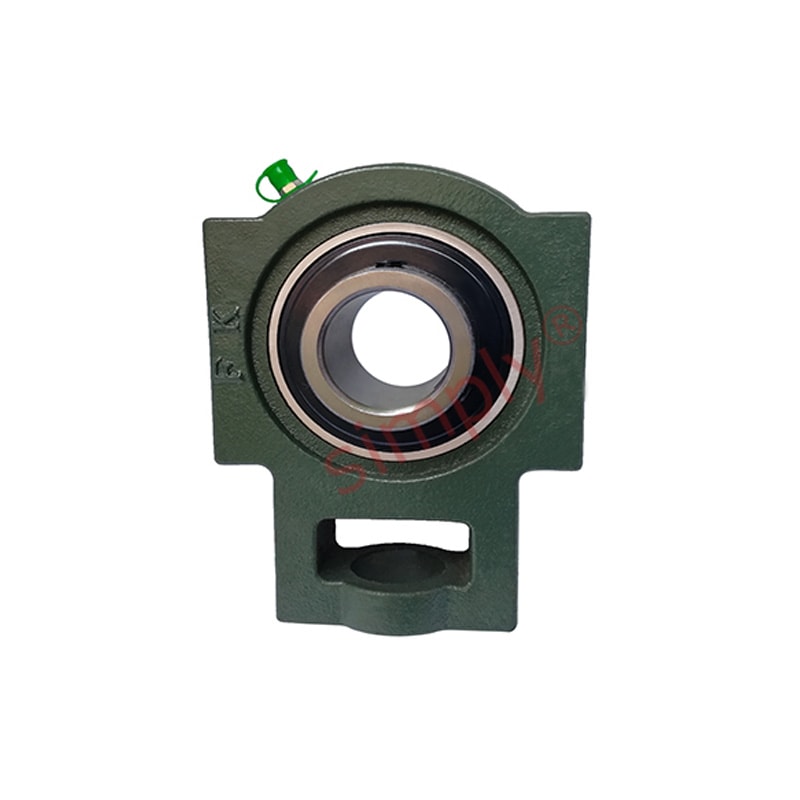

UCT305 Metric Cast Iron Take Up Unit Housing with 25mm Bore Insert
UCT305 Metric Cast Iron Take Up Unit Housing with 25mm Bore Insert
Regular price
€21,15
ex VAT
Regular price
Sale price
€21,15
ex VAT
In stock
Price Break
3+
€16,11
4+
€15,20
9+
€15,02
19+
€14,84
49+
€14,66
99+
€14,48
499+
€13,57
999+
€13,39
1999+
€13,21
2999+
€13,03
4999+
€12,67
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCT
Technical
Technical
| d | 25mm |
|---|---|
| o | 16mm |
| g | 14mm |
| p | 62mm |
| q | 36mm |
| s | 26mm |
| b | 65mm |
| k | 12mm |
| e | 80mm |
| a | 89mm |
| w | 122mm |
| j | 36mm |
| l | 26mm |
| h | 76mm |
| B | 38mm |
| n | 15mm |
| Bearing no | UC305 |
| Housing no | T305 |
| Weight | 1.2 kg |
