SKU: UCT205N-SNR

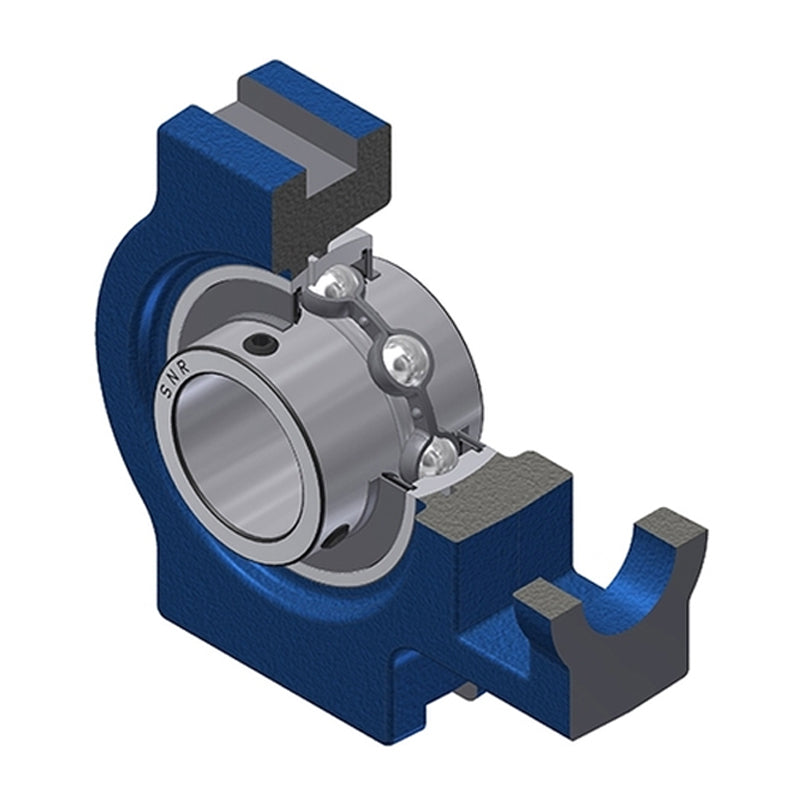

SNR UCT205N Metric Cast Iron Take Up Unit with 25mm Bore Bearing Unit - Allow 2-3 Days

Name: SNR UCT205N Metric Cast Iron Take Up Unit with 25mm Bore Bearing Unit - Allow 2-3 Days
Brand: SNR
SKU: UCT205N-SNR
Price: 90.62 EUR
Availability: InStock

€90,62 ex VAT

Sale Sold out

In stock

Price Break

3+ €76,77

4+ €73,67

9+ €72,12

19+ €69,80

49+ €68,24

99+ €64,37

499+ €54,29

999+ €0,00

1999+ €0,00

2999+ €0,00

4999+ €0,00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

Brand / Quality:: SNR - High Quality
Inside Diameter:: 25mm
Style:: UCT

Technical

---	Dimensions
Shaft diameter d	25mm
A	32mm
A1	12mm
A2	24mm
B	34mm
H	89mm
H1	76mm
H2	51mm
L	97mm
L1	62mm
L2	10mm
L3	51mm
N	19mm
N1	16mm
N2	32mm
S	14.3mm
G	M6x1
---	Load rating
Dynamic load C	14 kN
Static load C0	7.88 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Mass	0.81 kg
