SKU: UCT204CO-SNR

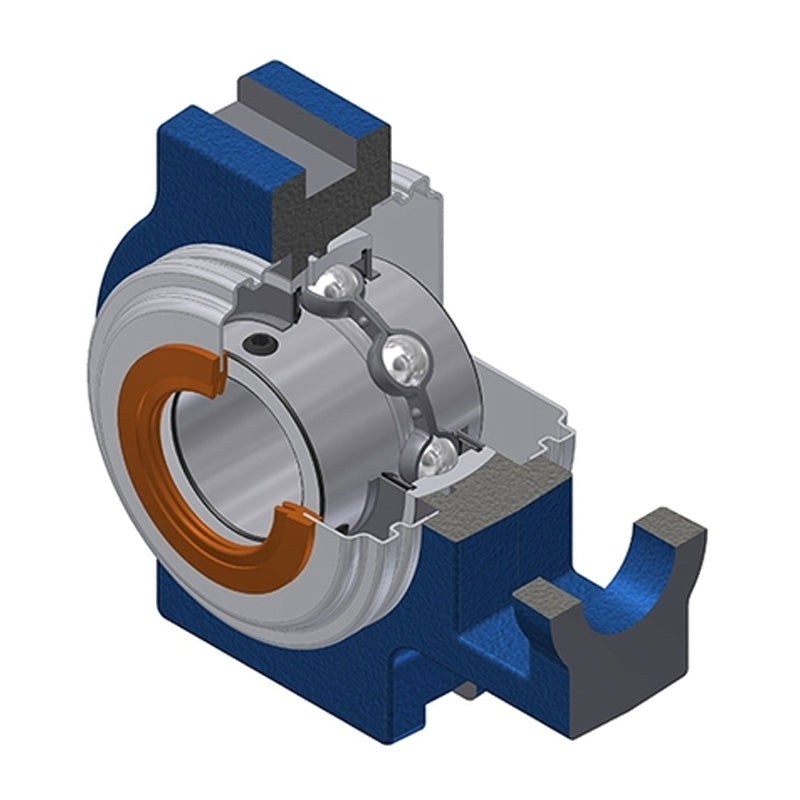

SNR UCT204CO Metric Cast Iron Take Up Unit with 20mm Bore Bearing Unit with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UCT204CO Metric Cast Iron Take Up Unit with 20mm Bore Bearing Unit with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€155,27
ex VAT
Regular price
Sale price
€155,27
ex VAT
In stock
Price Break
3+
€131,54
4+
€126,23
9+
€123,57
19+
€119,58
49+
€116,93
99+
€110,28
499+
€93,01
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 32mm |
| A1 | 12mm |
| A2 | 21mm |
| B | 31mm |
| H | 89mm |
| H1 | 76mm |
| H2 | 51mm |
| L | 94mm |
| L1 | 61mm |
| L2 | 10mm |
| L3 | 51mm |
| N | 19mm |
| N1 | 16mm |
| N2 | 32mm |
| S | 12.7mm |
| Dz | 54mm |
| Z | 44.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.828 kg |
