SKU: UCT.209-27

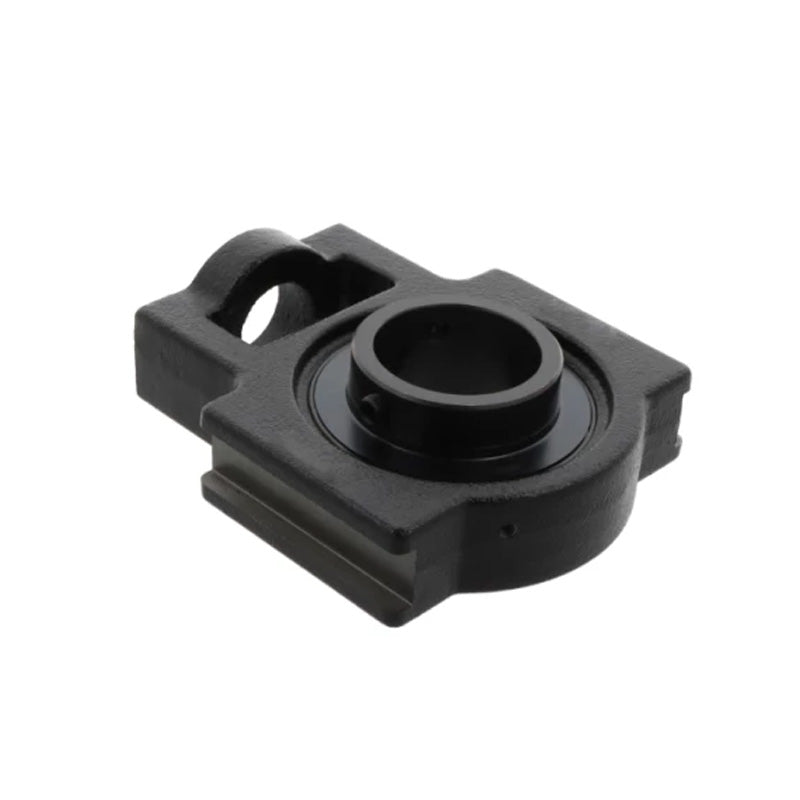

UCT209-27 Metric Series Cast Iron Take Up Unit Housing with 1-11/16 inch Bore Bearing Unit
UCT209-27 Metric Series Cast Iron Take Up Unit Housing with 1-11/16 inch Bore Bearing Unit
Regular price
€17,67
ex VAT
Regular price
Sale price
€17,67
ex VAT
In stock
Price Break
3+
€13,46
4+
€12,70
9+
€12,55
19+
€12,40
49+
€12,25
99+
€12,10
499+
€11,34
999+
€11,19
1999+
€11,04
2999+
€10,89
4999+
€10,58
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UCT
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| o | 19mm |
| g | 16mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 83mm |
| k | 16mm |
| e | 102mm |
| a | 117mm |
| W | 144mm |
| j | 49mm |
| L | 35mm |
| h | 87mm |
| Bi | 49.2mm |
| n | 19mm |
| Weight | 2.4 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
