SKU: UCSP207CO-SNR

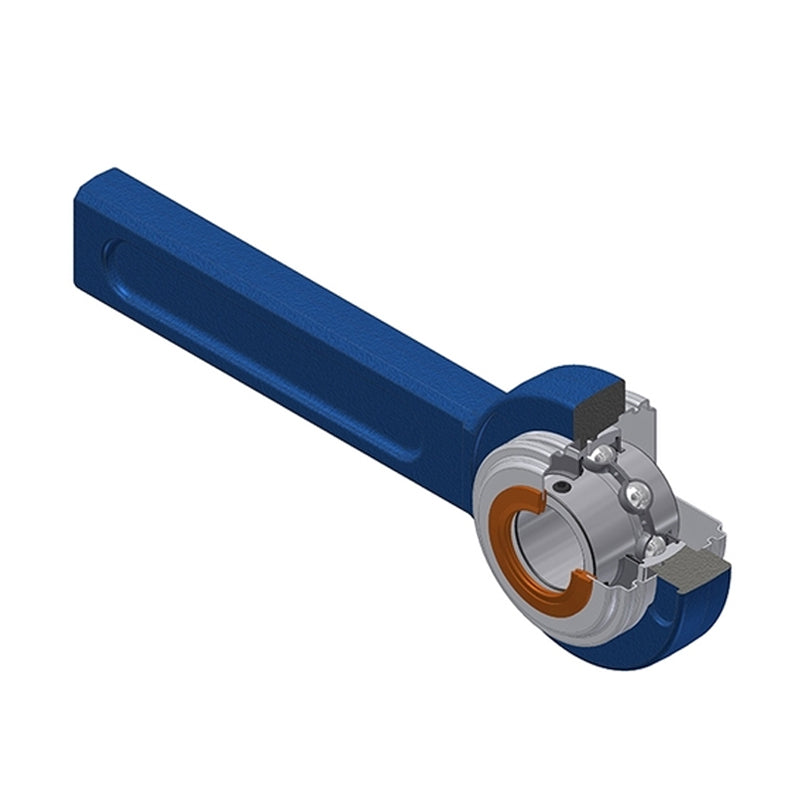

SNR UCSP207CO Metric Cast Iron Tensioner Unit with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCSP207CO Metric Cast Iron Tensioner Unit with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €129,53 ex VAT
Regular price Sale price €129,53 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,73
4+ €105,30
9+ €103,08
19+ €99,76
49+ €97,54
99+ €92,00
499+ €77,59
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 21mm
B 42.9mm
H 98mm
H2 41mm
L 274mm
L1 225mm
S 17.5mm
Dz 80mm
Z 54.4mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 1.982 kg
