SKU: UCPH209

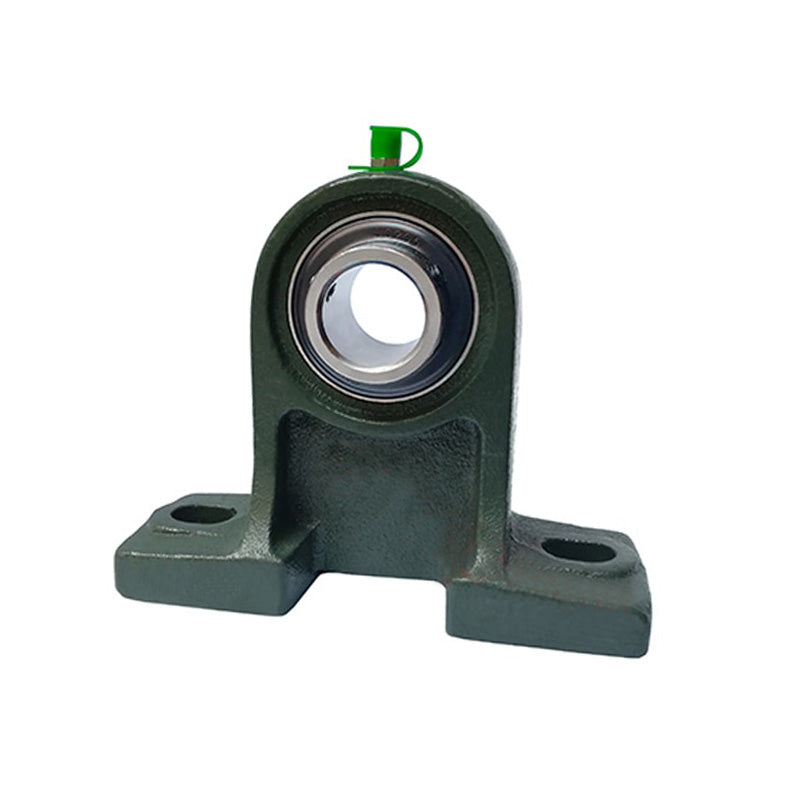

UCPH209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Insert
UCPH209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Insert
Regular price
€46,35
ex VAT
Regular price
Sale price
€46,35
ex VAT
In stock
Price Break
10+
€41,25
19+
€38,93
29+
€38,47
39+
€38,01
49+
€37,54
74+
€37,08
99+
€34,76
199+
€34,30
249+
€33,84
499+
€33,37
999+
€32,45
Couldn't load pickup availability
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCPH
- Bolt Hole Centres:
- 146mm
Technical
Technical
| d | 45mm |
|---|---|
| h | 105mm |
| a | 189mm |
| e | 146mm |
| b | 70mm |
| s1 | 17mm |
| s2 | 21mm |
| g | 20mm |
| w | 158mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M14 |
| Bearing no | UC209 |
| Housing no | PH209 |
| Weight | 2.67 kg |
