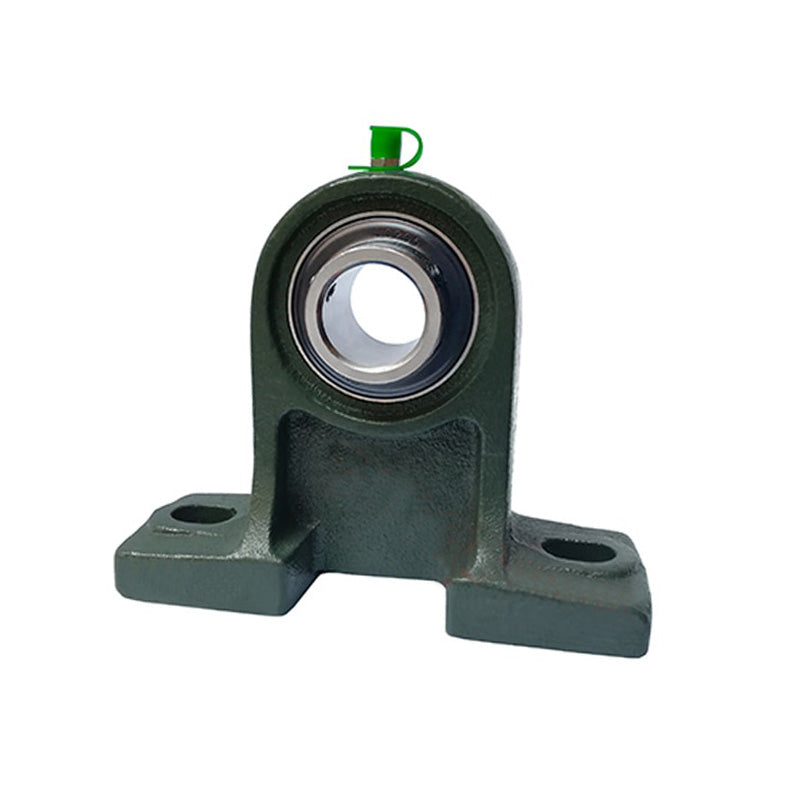

UCPH206-17 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/16 inch Insert

UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

26.99mm = 1.063 (1-1/16) inch

Style:

UCPH

Bolt Hole Centres:

120.65mm = 4.75 (4-3/4) inch
