SKU: UCPG212D1-NTN

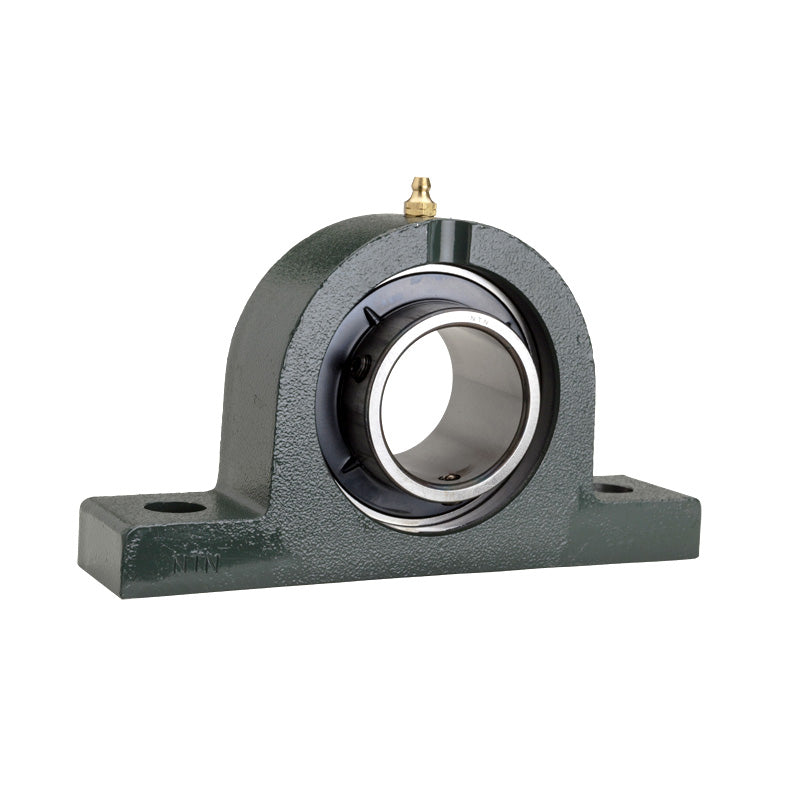

NTN UCPG212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
NTN UCPG212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price
€782,95
ex VAT
Regular price
Sale price
€782,95
ex VAT
Allow 2-3 Days
In stock
Price Break
2+
€743,80
5+
€704,66
10+
€665,51
15+
€626,36
20+
€610,70
30+
€595,04
50+
€516,75
Couldn't load pickup availability
Share this product
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCPG
- Bolt Hole Centres:
- 184mm
Technical
Technical
| Shaft diameter | 60mm |
|---|---|
| H | 69.8mm |
| L | 241mm |
| J | 184mm |
| A | 50mm |
| N | 19mm |
| H<sub>1</sub> | 25mm |
| H<sub>2</sub> | 138mm |
| B | 65.1mm |
| S | 25.4mm |
| Fixing bolt | M16 |
| Mass | 5.3 kg |
