SKU: UCPG211CO-SNR

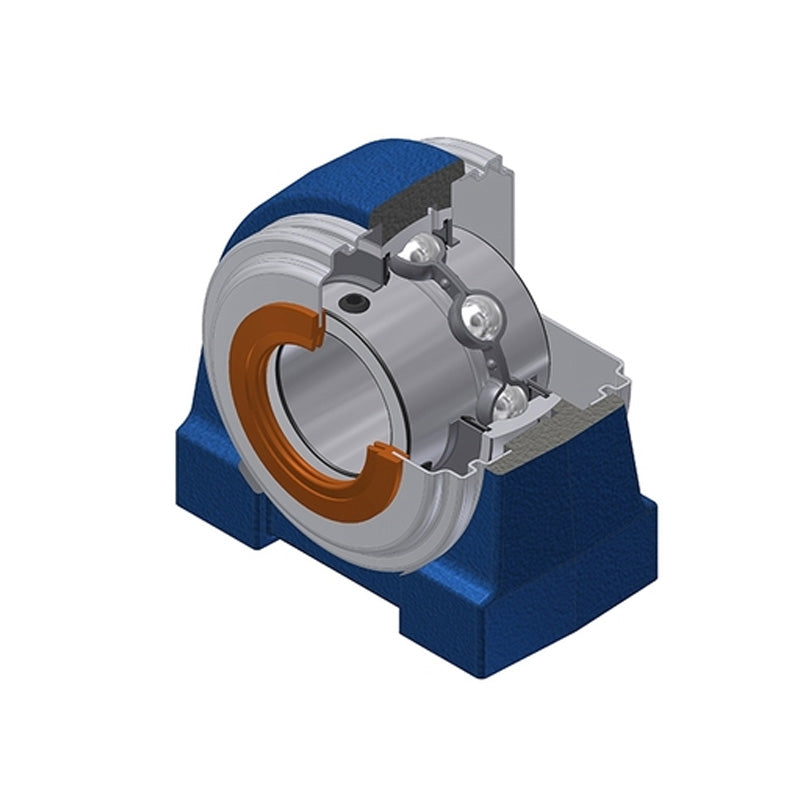

SNR UCPG211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPG211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €116,58 ex VAT
Regular price Sale price €116,58 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,76
4+ €94,77
9+ €92,78
19+ €89,78
49+ €87,79
99+ €82,80
499+ €69,83
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 34mm
B 55.6mm
E 25mm
H 63.5mm
H1 25mm
H2 126mm
J 100mm
L 140mm
L1 40mm
N M16
S 22.2mm
Dz 110mm
Z 52.6mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.441 kg
