SKU: UCPEX12-SNR

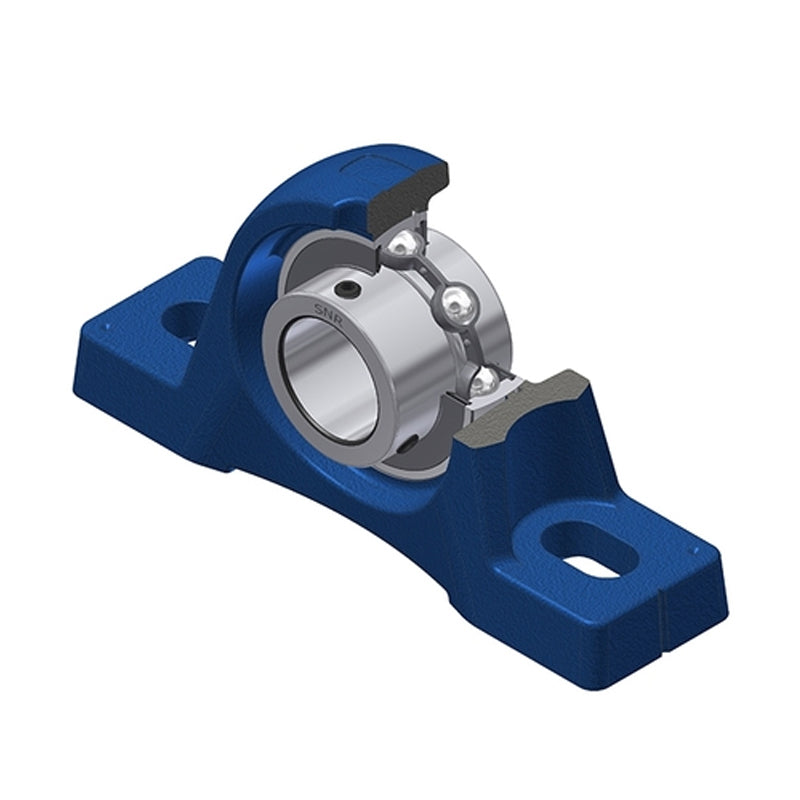

SNR UCPEX12 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days

SNR UCPEX12 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price €129,47 ex VAT
Regular price Sale price €129,47 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,68
4+ €105,25
9+ €103,03
19+ €99,71
49+ €97,50
99+ €91,96
499+ €77,55
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 60mm
A 72mm
A1 47.4mm
B 74.6mm
H 76.2mm
H1 27mm
H2 153mm
J 207mm
L 266mm
L1 76mm
N 22mm
N1 39.5mm
S 30.2mm
G R1/8″
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 6.77 kg
