SKU: UCPE211-34-SNR

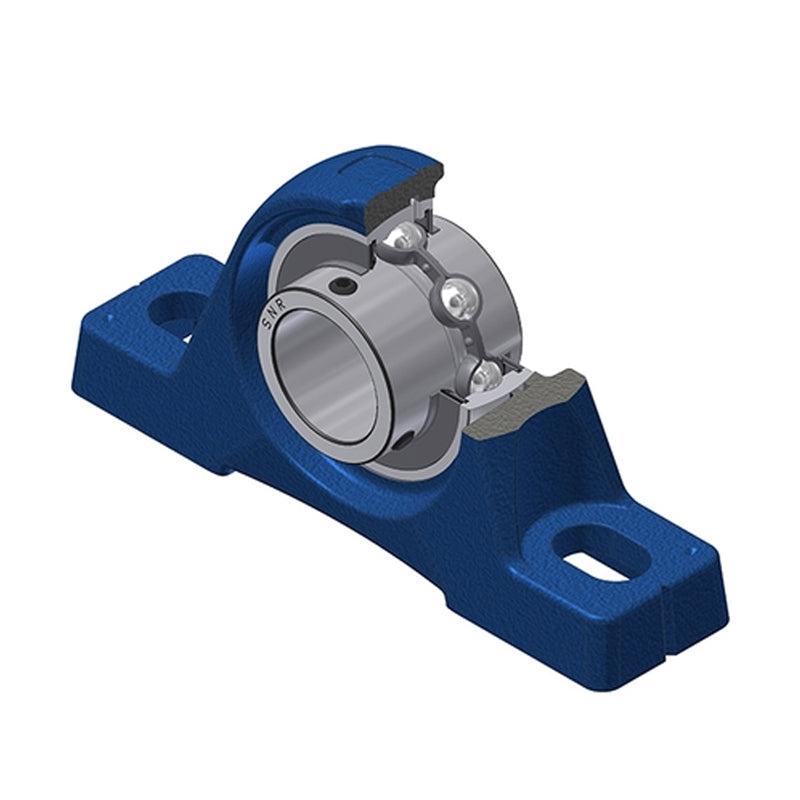

SNR UCPE211-34 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/8 inch Bore Insert - Allow 2-3 Days

SNR UCPE211-34 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/8 inch Bore Insert - Allow 2-3 Days
Regular price €77,69 ex VAT
Regular price Sale price €77,69 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,82
4+ €63,16
9+ €61,83
19+ €59,83
49+ €58,50
99+ €55,18
499+ €46,54
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 2-1/8mm
A 60mm
A1 35mm
B 55.6mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 22.2mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 3.47 kg
