SKU: UCPE209T20-SNR

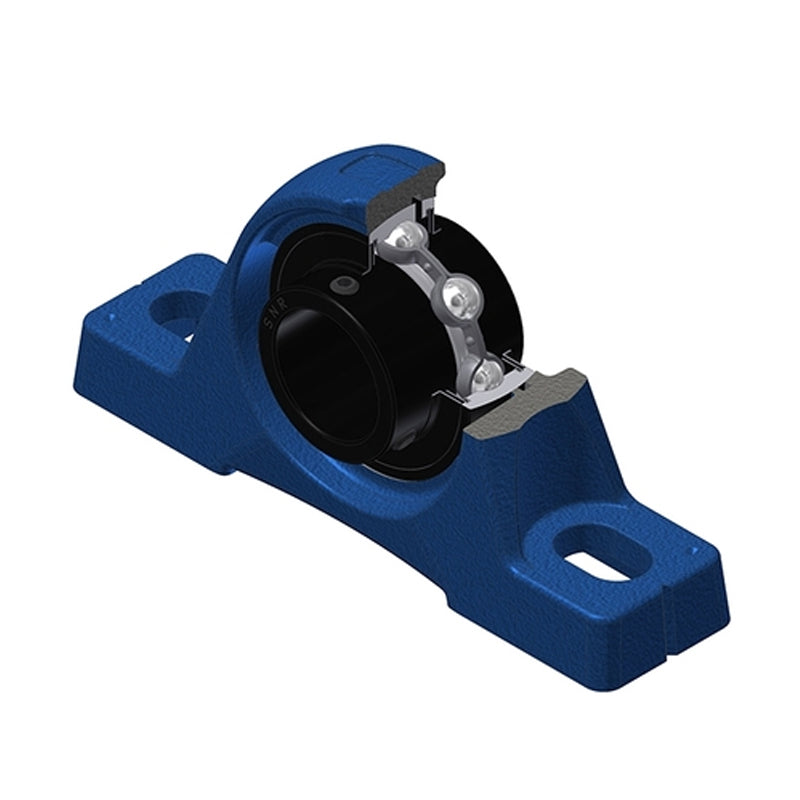

SNR UCPE209T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCPE209T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price €90,58 ex VAT
Regular price Sale price €90,58 ex VAT
Sale Sold out

In stock

Price Break
3+ €76,73
4+ €73,63
9+ €72,08
19+ €69,76
49+ €68,21
99+ €64,33
499+ €54,26
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 49.2mm
H 54mm
H1 21.5mm
H2 107mm
J 150mm
L 192mm
L1 54.5mm
N 14mm
N1 29mm
S 19mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.18 kg
