SKU: UCPE202-SNR

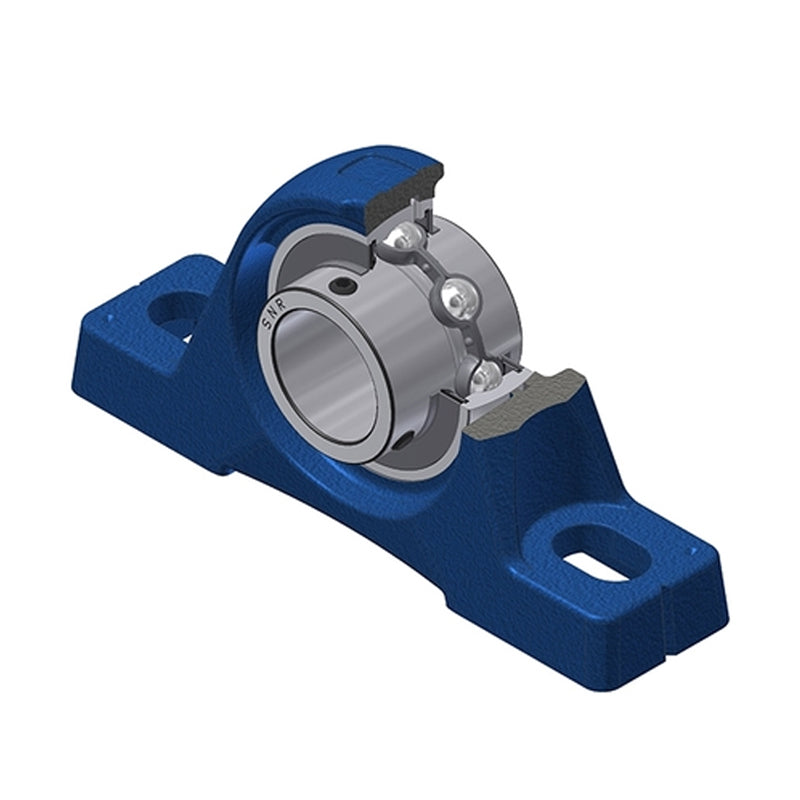

SNR UCPE202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Bore Insert - Allow 2-3 Days

SNR UCPE202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Bore Insert - Allow 2-3 Days
Regular price €31,06 ex VAT
Regular price Sale price €31,06 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,31
4+ €25,25
9+ €24,72
19+ €23,92
49+ €23,39
99+ €22,06
499+ €18,61
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 15mm
A 32mm
A1 19mm
B 31mm
H 33.3mm
H1 14.5mm
H2 64mm
J 97mm
L 130mm
L1 40mm
N 11mm
N1 19mm
S 12.7mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.6 kg
