SKU: UCPAE211-SNR

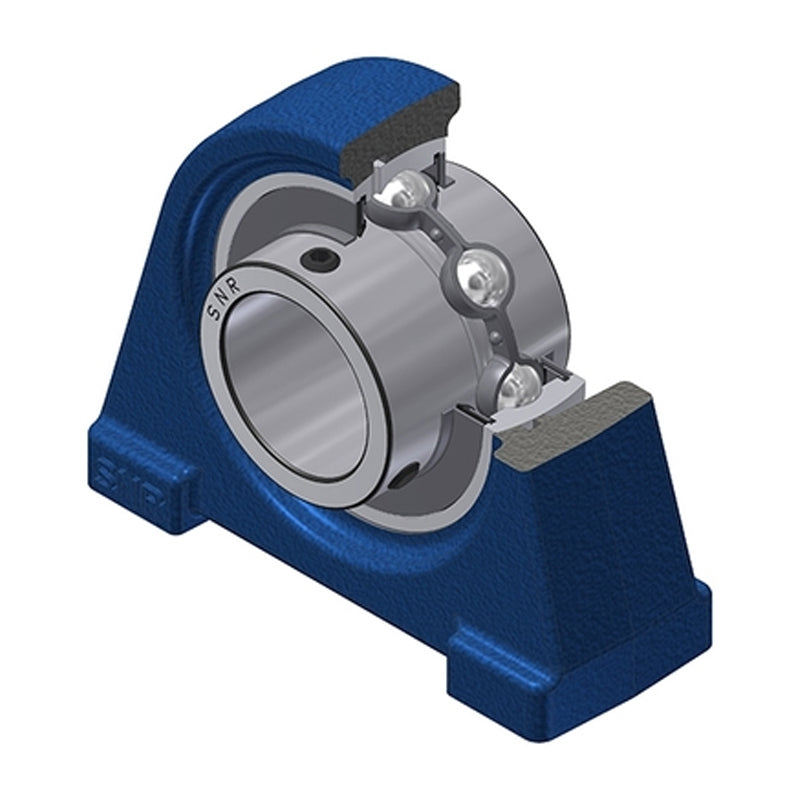

SNR UCPAE211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert - Allow 2-3 Days
SNR UCPAE211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert - Allow 2-3 Days
Regular price
€90,59
ex VAT
Regular price
Sale price
€90,59
ex VAT
In stock
Price Break
3+
€76,74
4+
€73,64
9+
€72,09
19+
€69,77
49+
€68,22
99+
€64,34
499+
€54,26
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCPAE
- Bolt Hole Centres:
- 118mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 60mm |
| A1 | 35mm |
| B | 55.6mm |
| E | 20mm |
| H | 64mm |
| H1 | 16mm |
| H2 | 125mm |
| J | 118mm |
| L | 150mm |
| L1 | 32mm |
| N | M16 |
| S | 22.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.12 kg |
