SKU: UCPAE206-19-SNR

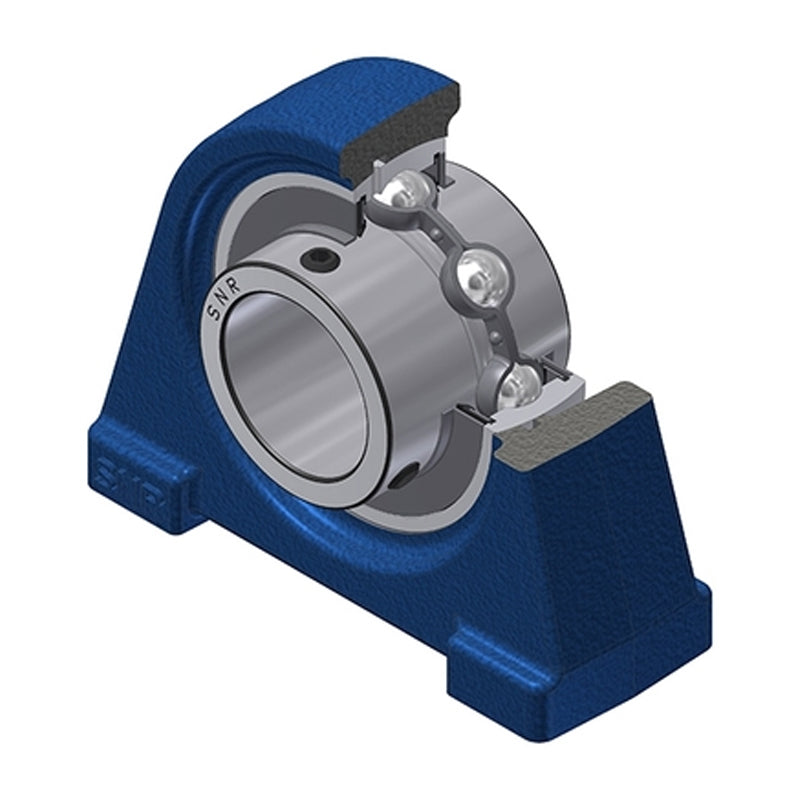

SNR UCPAE206-19 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 1-3/16 inch Bore Insert - Allow 2-3 Days
SNR UCPAE206-19 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 1-3/16 inch Bore Insert - Allow 2-3 Days
Regular price
€46,58
ex VAT
Regular price
Sale price
€46,58
ex VAT
In stock
Price Break
3+
€39,46
4+
€37,87
9+
€37,07
19+
€35,87
49+
€35,08
99+
€33,08
499+
€27,90
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- UCPAE
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-3/16 inch |
| A | 38mm |
| A1 | 25mm |
| B | 38.1mm |
| E | 12.5mm |
| H | 42.9mm |
| H1 | 11mm |
| H2 | 82mm |
| J | 76.2mm |
| L | 98mm |
| L1 | 22mm |
| N | M10 |
| S | 15.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.91 kg |
