SKU: UCPA207T20CC-SNR

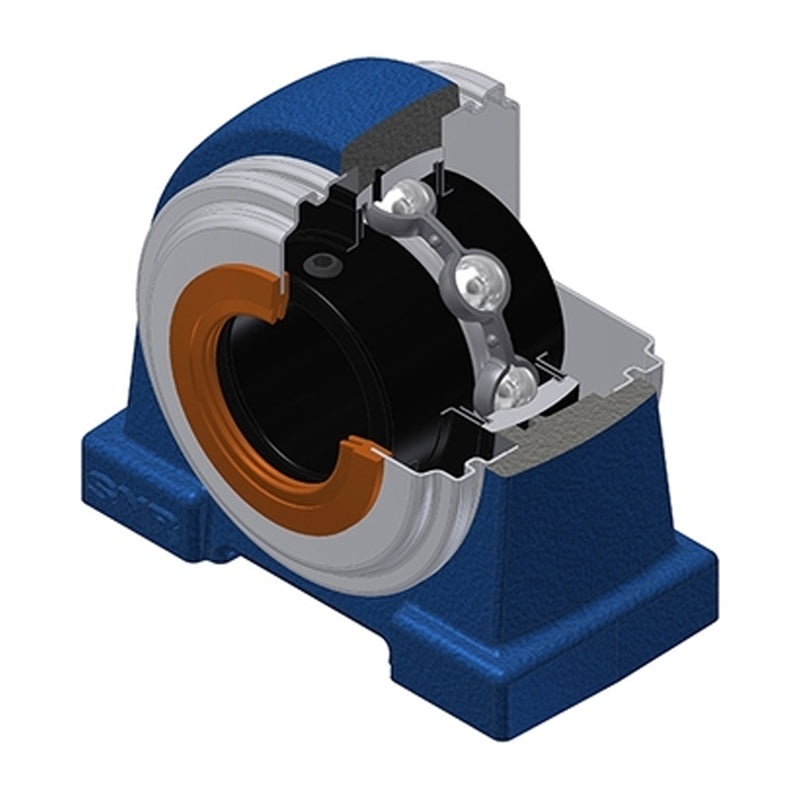

SNR UCPA207T20CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Wide Temperature Version - Allow 2-3 Days
SNR UCPA207T20CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Wide Temperature Version - Allow 2-3 Days
Regular price
€90,67
ex VAT
Regular price
Sale price
€90,67
ex VAT
In stock
Price Break
3+
€76,81
4+
€73,71
9+
€72,16
19+
€69,83
49+
€68,28
99+
€64,40
499+
€54,31
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCPA
- Bolt Hole Centres:
- 80mm
Technical
Technical

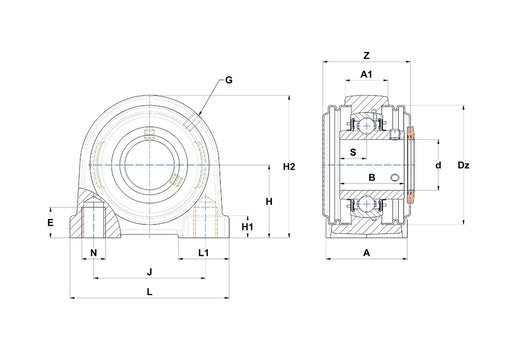

| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 48mm |
| A1 | 27mm |
| B | 42.9mm |
| E | 20mm |
| H | 47.6mm |
| H1 | 13mm |
| H2 | 95mm |
| J | 80mm |
| L | 110mm |
| L1 | 30mm |
| N | M14 |
| S | 17.5mm |
| Dz | 80mm |
| Z | 60mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.47 kg |
