SKU: UCPA.210-31

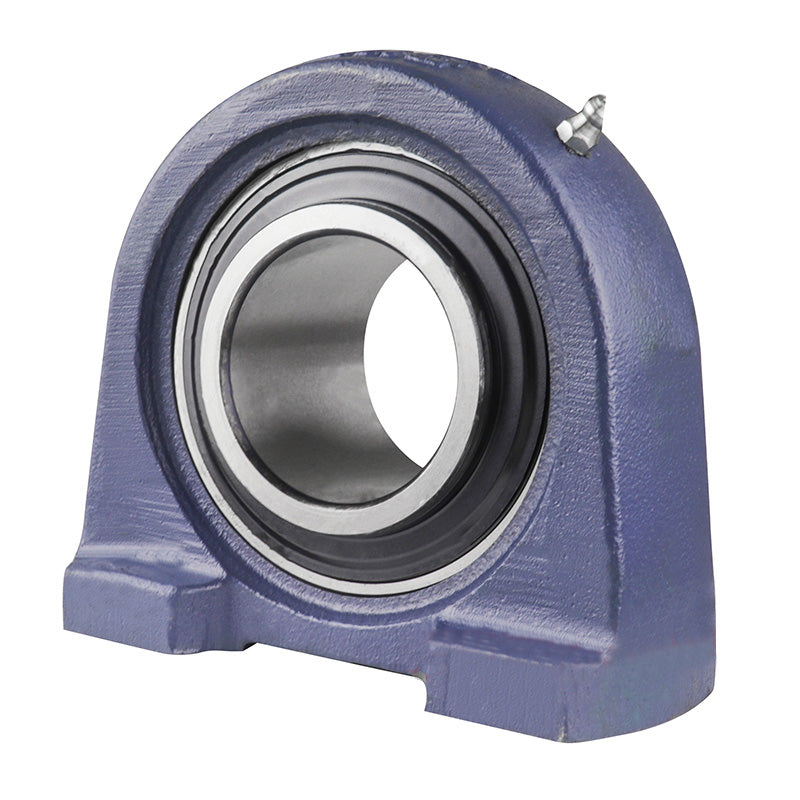

UCPA210-31 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-15/16 inch Bore Insert
UCPA210-31 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-15/16 inch Bore Insert
Regular price
€27,57
ex VAT
Regular price
Sale price
€27,57
ex VAT
In stock
Price Break
3+
€21,00
4+
€19,82
9+
€19,58
19+
€19,34
49+
€19,11
99+
€18,87
499+
€17,69
999+
€17,46
1999+
€17,22
2999+
€16,98
4999+
€16,51
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 94.06mm = 3.703 (3-45/64) inch
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| h | 2-1/4" |
| a | 5-1/8" |
| e | 3-45/64" |
| b | 2-17/32" |
| s | M16 |
| g | 9/16" |
| w | 4-9/16" |
| D | 1" |
| Bi | 2.0315" |
| n | 0.7480" |
| Bolt Size | M16 |
| Weight | 2.8 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
