SKU: UCPA.210

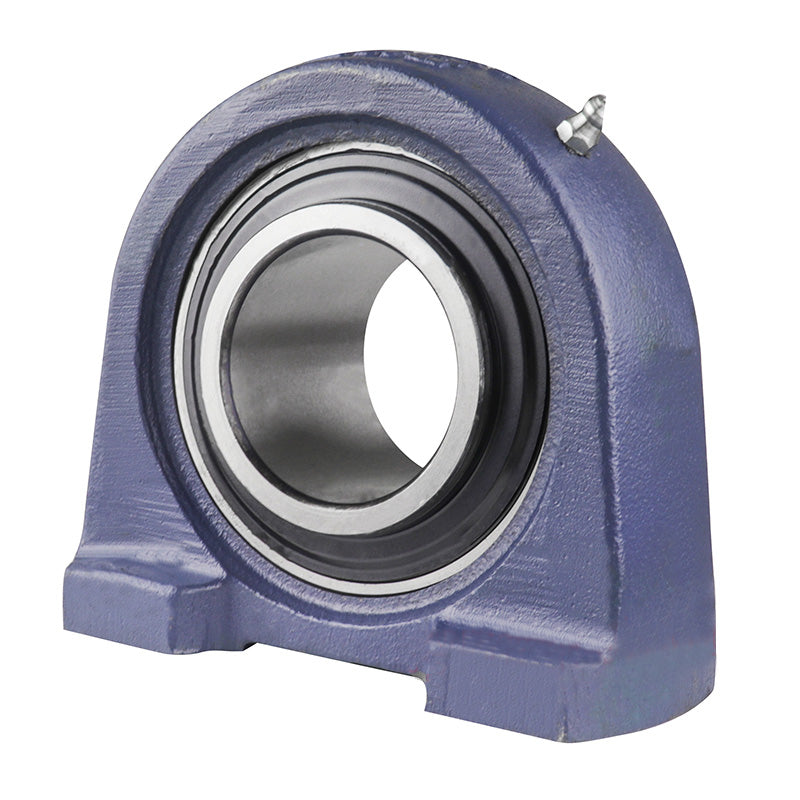

UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
Regular price
€20,11
ex VAT
Regular price
Sale price
€20,11
ex VAT
Equivalent to: SNP50
In stock
Price Break
3+
€15,32
4+
€14,46
9+
€14,28
19+
€14,11
49+
€13,94
99+
€13,77
499+
€12,91
999+
€12,74
1999+
€12,56
2999+
€12,39
4999+
€12,05
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP50
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCPA
- Bolt Hole Centres:
- 94mm
Technical
Technical
| d | 50mm |
|---|---|
| h | 57.2mm |
| a | 130mm |
| e | 94mm |
| b | 64mm |
| s | M16 |
| g | 14mm |
| w | 116mm |
| D | 25mm |
| Bi | 51.6mm |
| n | 19mm |
| Bolt Size | M16 |
| Weight | 2.8 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
