SKU: UCPA.209-27

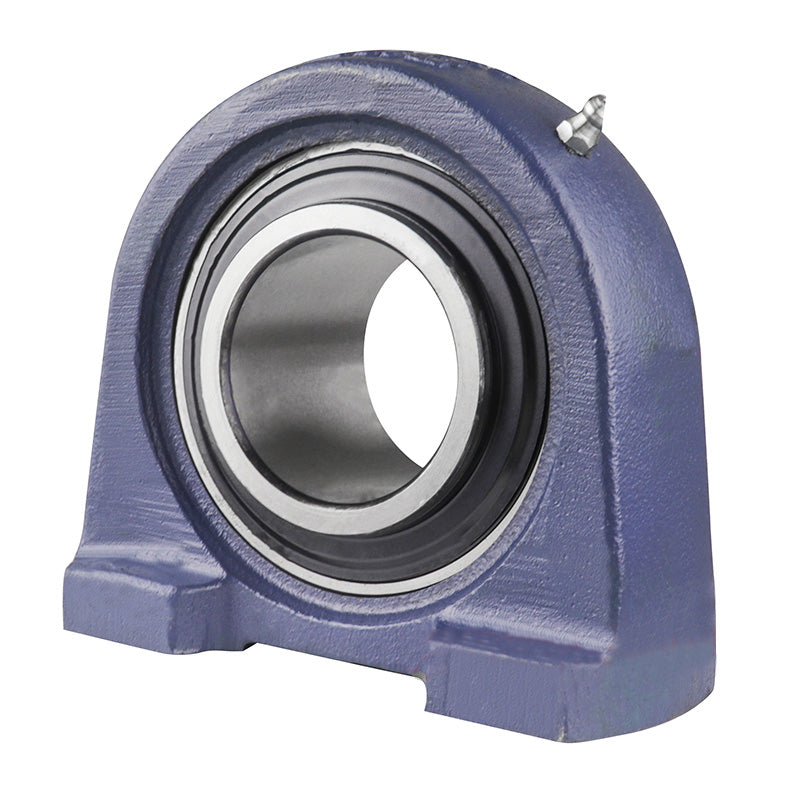

UCPA209-27 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-11/16 inch Bore Insert
UCPA209-27 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-11/16 inch Bore Insert
Regular price
€34,38
ex VAT
Regular price
Sale price
€34,38
ex VAT
In stock
Price Break
3+
€26,18
4+
€24,71
9+
€24,42
19+
€24,12
49+
€23,83
99+
€23,53
499+
€22,06
999+
€21,77
1999+
€21,47
2999+
€21,18
4999+
€20,59
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 90.09mm = 3.547 (3-35/64) inch
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| h | 2-9/64" |
| a | 4-23/32" |
| e | 3-35/64" |
| b | 2-3/8" |
| s | M14 |
| g | 1/2" |
| w | 4-1/4" |
| D | 1" |
| Bi | 1.9370" |
| n | 0.7480" |
| Bolt Size | M14 |
| Weight | 2.2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
