SKU: UCPA.206

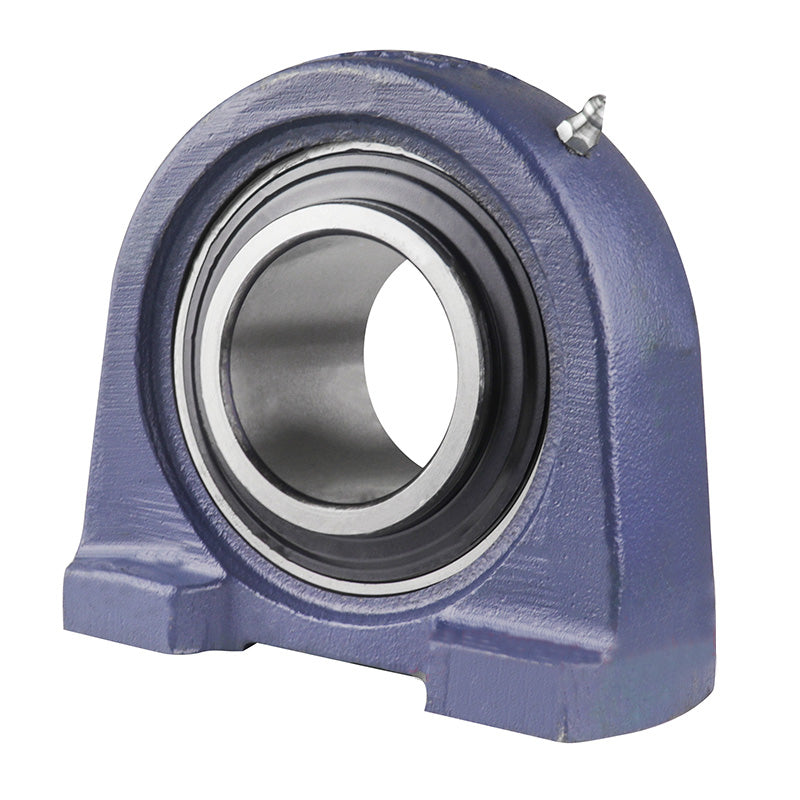

UCPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert
UCPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert
Regular price
€17,78
ex VAT
Regular price
Sale price
€17,78
ex VAT
Equivalent to: SNP30
In stock
Price Break
10+
€15,82
19+
€14,94
29+
€14,76
39+
€14,58
49+
€14,40
74+
€14,22
99+
€13,34
199+
€13,16
249+
€12,98
499+
€12,80
999+
€12,45
Couldn't load pickup availability
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP30
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCPA
- Bolt Hole Centres:
- 66mm
Technical
Technical
| d | 30mm |
|---|---|
| h | 42.9mm |
| a | 94mm |
| e | 66mm |
| b | 50mm |
| s | M14 |
| g | 12mm |
| w | 84mm |
| D | 18mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M14 |
| Weight | 1.2 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
