SKU: UCPA.205-15

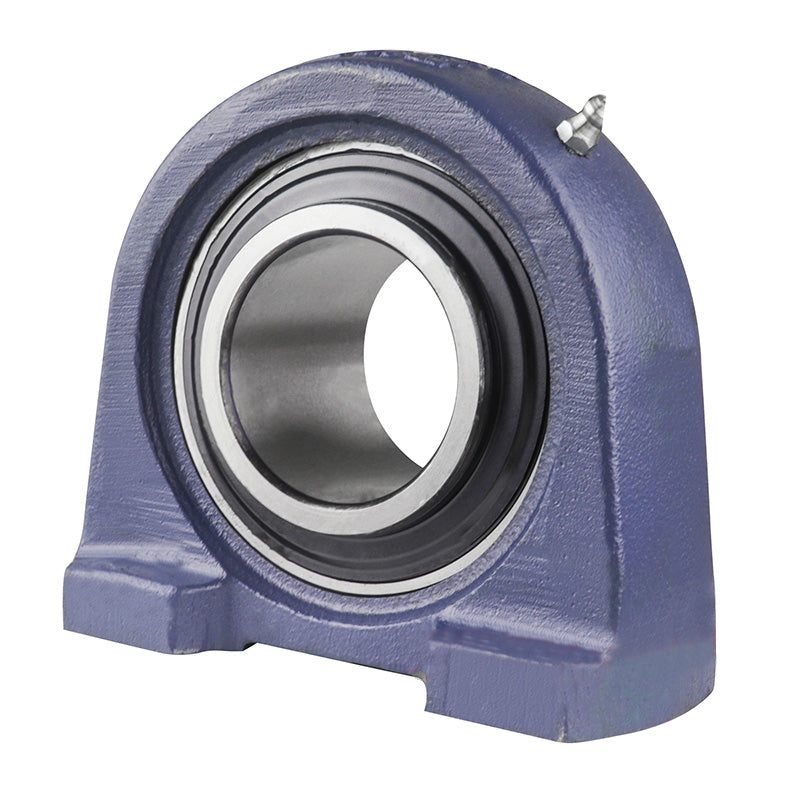

UCPA205-15 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 15/16 inch Bore Insert
UCPA205-15 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 15/16 inch Bore Insert
Regular price
€8,33
ex VAT
Regular price
Sale price
€8,33
ex VAT
In stock
Price Break
3+
€6,35
4+
€5,99
9+
€5,92
19+
€5,85
49+
€5,78
99+
€5,70
499+
€5,35
999+
€5,28
1999+
€5,20
2999+
€5,13
4999+
€4,99
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 55.96mm = 2.203 (2-13/64) inch
Technical
Technical
| d | 15/16 inch |
|---|---|
| h | 1-7/16" |
| a | 3-5/16" |
| e | 2-13/64" |
| b | 1-25/32" |
| s | M10 |
| g | 15/32" |
| w | 2-27/32" |
| D | 1/2" |
| Bi | 1.3386" |
| n | 0.5630" |
| Bolt Size | M10 |
| Weight | 0.83 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
