SKU: UCPA.205

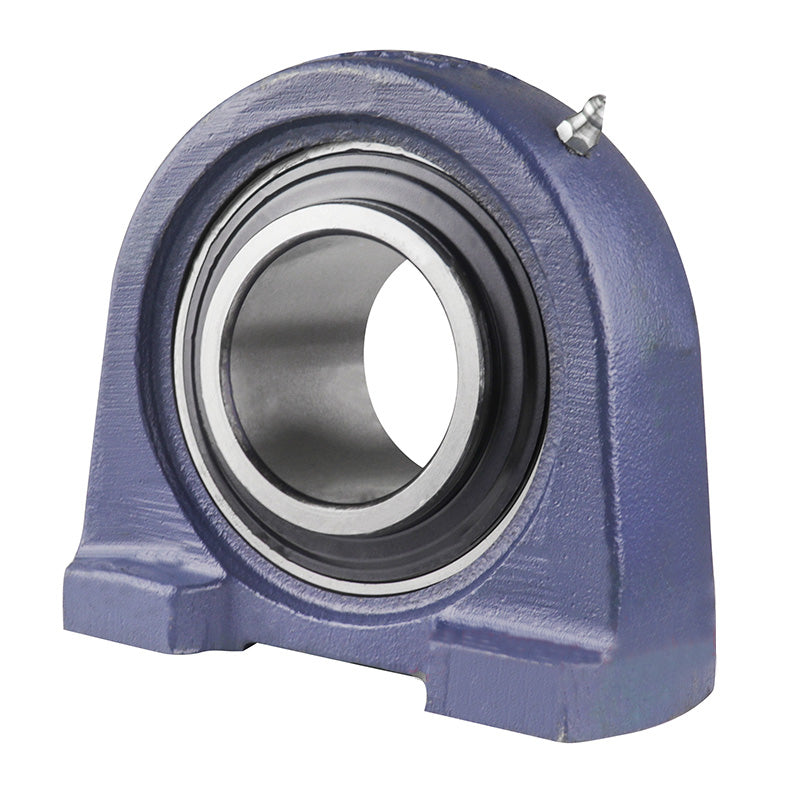

UCPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert
UCPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert
Regular price
€9,77
ex VAT
Regular price
Sale price
€9,77
ex VAT
Equivalent to: SNP25
In stock
Price Break
3+
€7,44
4+
€7,02
9+
€6,94
19+
€6,86
49+
€6,77
99+
€6,69
499+
€6,27
999+
€6,19
1999+
€6,10
2999+
€6,02
4999+
€5,85
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP25
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCPA
- Bolt Hole Centres:
- 56mm
Technical
Technical
| d | 25mm |
|---|---|
| h | 36.5mm |
| a | 84mm |
| e | 56mm |
| b | 45mm |
| s | M10 |
| g | 12mm |
| w | 72mm |
| D | 13mm |
| Bi | 34mm |
| n | 14.3mm |
| Bolt Size | M10 |
| Weight | 0.83 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
