SKU: UCP310-SNR

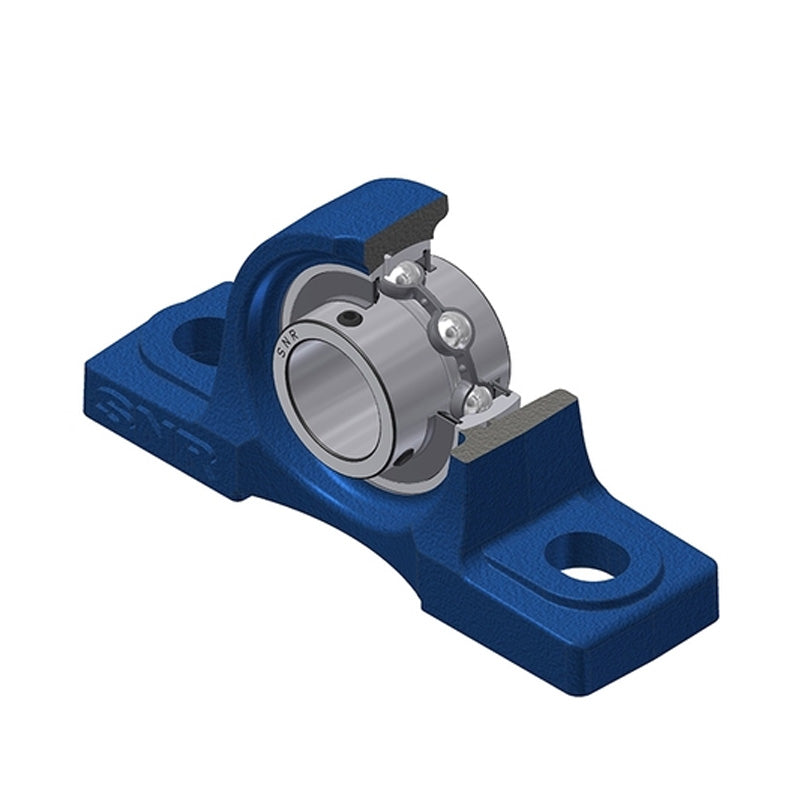

SNR UCP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
SNR UCP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
Regular price
€95,98
ex VAT
Regular price
Sale price
€95,98
ex VAT
In stock
Price Break
10+
€85,42
19+
€80,62
29+
€79,66
39+
€78,70
49+
€77,74
74+
€76,78
99+
€71,99
199+
€71,03
249+
€70,07
499+
€69,11
999+
€67,19
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCP
- Bolt Hole Centres:
- 212mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 75mm |
| A1 | 48mm |
| B | 61mm |
| H | 75mm |
| H1 | 27mm |
| H2 | 143mm |
| J | 212mm |
| L | 275mm |
| L1 | 75mm |
| N | 20mm |
| N1 | 35mm |
| S | 22mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 37.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 6.15 kg |
| Recommended tightening torque for set screw | 33 Nm |
