SKU: UCP216T04-SNR

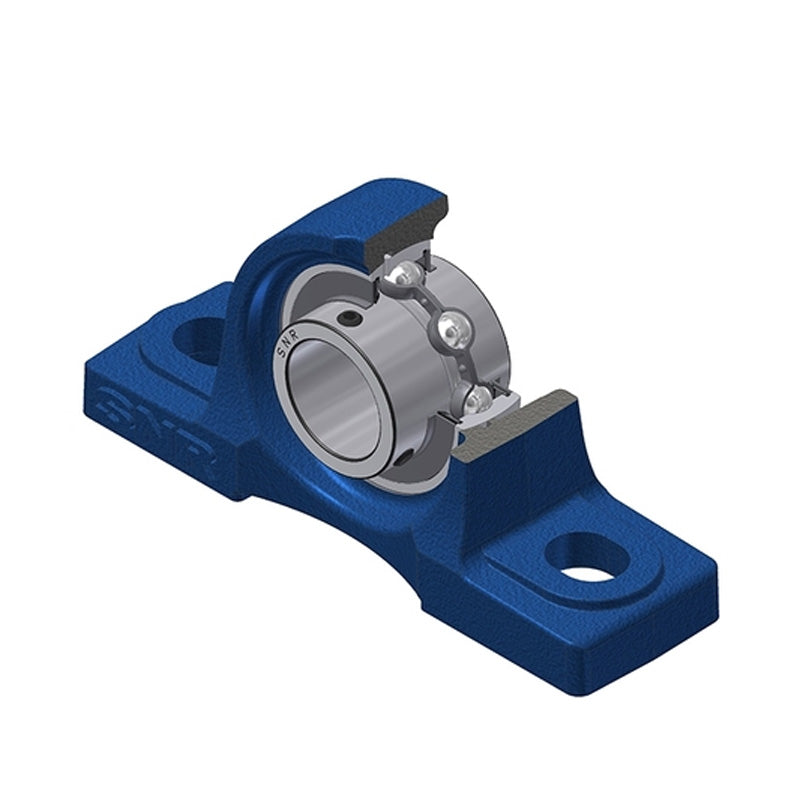

SNR UCP216T04 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert Low Temperature Version - Allow 2-3 Days
SNR UCP216T04 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert Low Temperature Version - Allow 2-3 Days
Regular price
€517,94
ex VAT
Regular price
Sale price
€517,94
ex VAT
In stock
Price Break
3+
€438,79
4+
€421,06
9+
€412,19
19+
€398,90
49+
€390,03
99+
€367,87
499+
€310,25
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCP
- Bolt Hole Centres:
- 232mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 78mm |
| A1 | 51mm |
| B | 82.6mm |
| H | 88.9mm |
| H1 | 30mm |
| H2 | 175mm |
| J | 232mm |
| L | 292mm |
| L1 | 91mm |
| N | 25mm |
| N1 | 31mm |
| S | 33.3mm |
| Grease fitting G | M10x1 |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -40°C |
| Operating temperature max. | 100°C |
| Mass | 8.99 kg |
| Recommended tightening torque for set screw | 33 Nm |
