SKU: UCP215D1-NTN

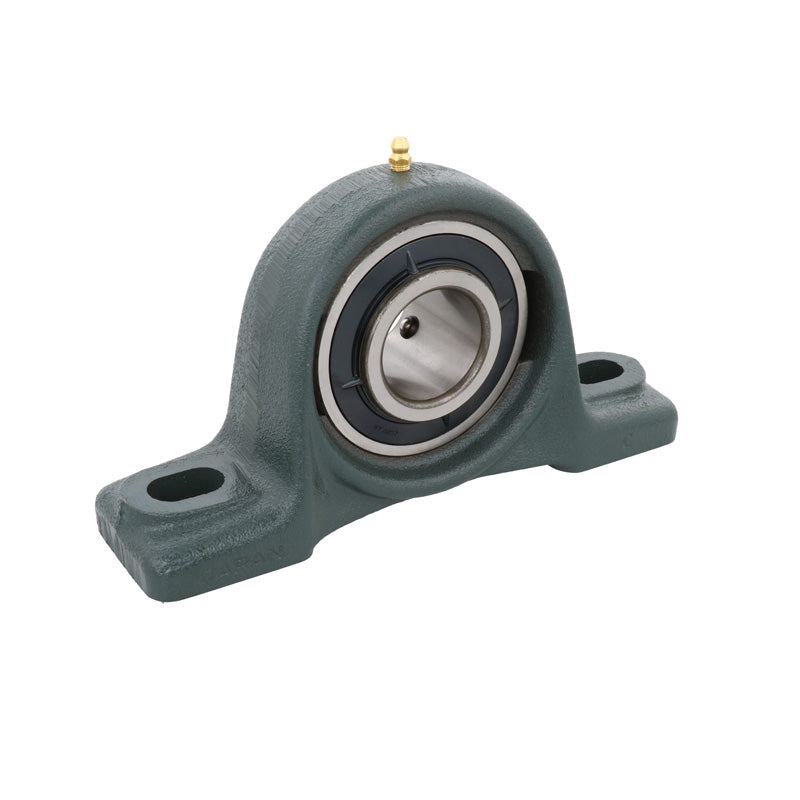

NTN UCP215D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert - Allow 2-3 Days
NTN UCP215D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert - Allow 2-3 Days
Regular price
€155,28
ex VAT
Regular price
Sale price
€155,28
ex VAT
In stock
Price Break
3+
€131,55
4+
€126,24
9+
€123,58
19+
€119,59
49+
€116,93
99+
€110,29
499+
€93,02
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCP
- Bolt Hole Centres:
- 217mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| H | 82.6mm |
| L | 275mm |
| J | 217mm |
| A | 74mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 28mm |
| H<sub>2</sub> | 163mm |
| L<sub>1</sub> | 80mm |
| B | 77.8mm |
| S | 33.3mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 73.5 kN |
| Static load C<sub>0r</sub> | 49.5 kN |
| Fatigue load limit C<sub>u</sub> | 3.8 kN |
| --- | Unit information |
| Mass | 7.2 kg |
