SKU: UCP212L3-SNR

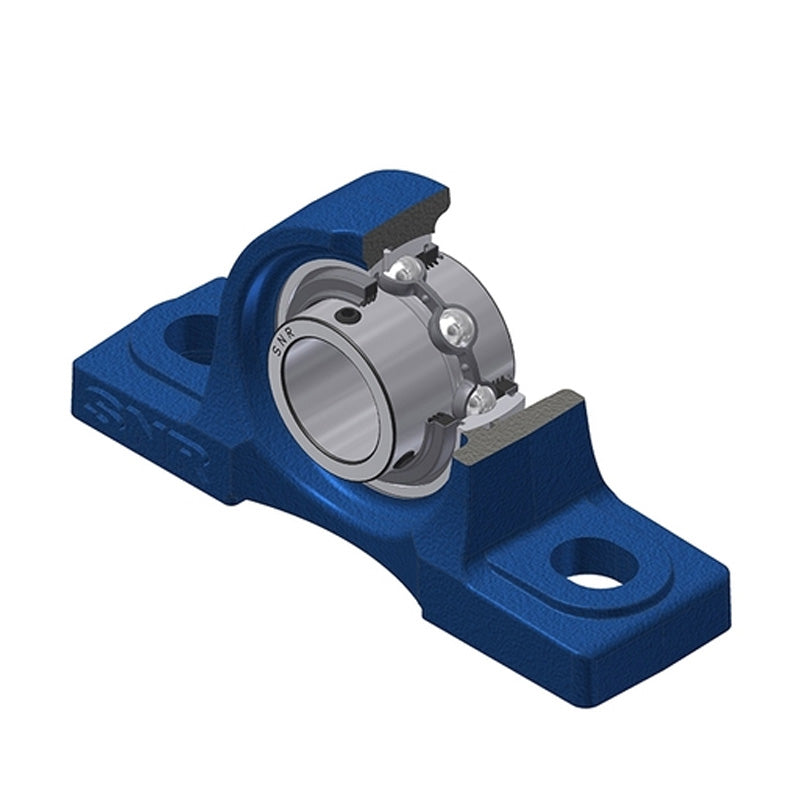

SNR UCP212L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCP212L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
€129,53
ex VAT
Regular price
Sale price
€129,53
ex VAT
In stock
Price Break
3+
€109,73
4+
€105,30
9+
€103,08
19+
€99,76
49+
€97,54
99+
€92,00
499+
€77,59
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 70mm |
| A1 | 44mm |
| B | 65.1mm |
| H | 69.8mm |
| H1 | 25mm |
| H2 | 138mm |
| J | 184mm |
| L | 241mm |
| L1 | 70mm |
| N | 20mm |
| N1 | 25mm |
| S | 25.4mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 5.03 kg |
| Recommended tightening torque for set screw | 22 Nm |
