SKU: UCP209-112D1-NTN

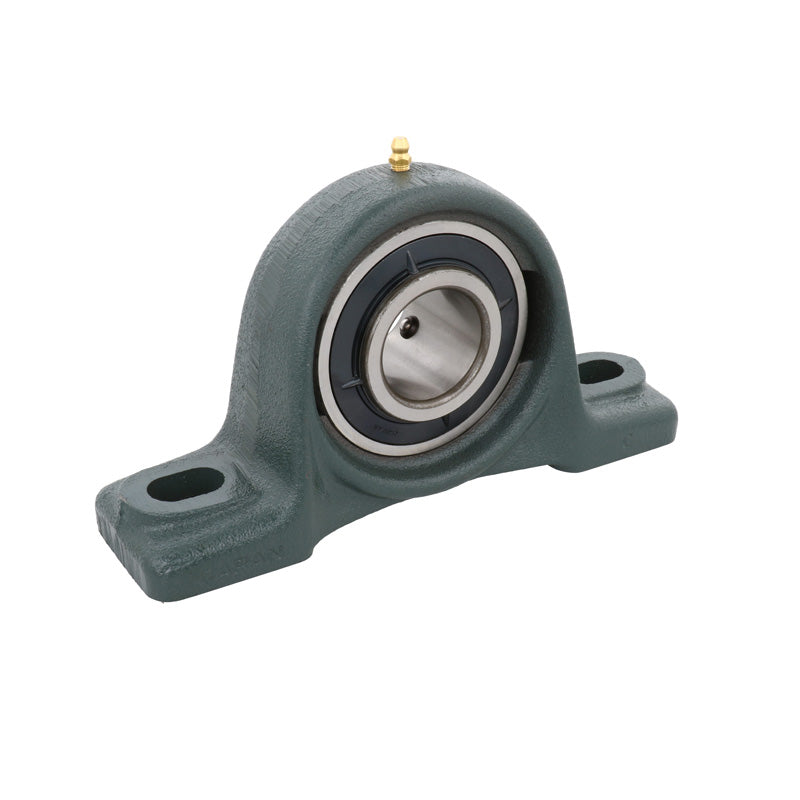

NTN UCP209-112D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
NTN UCP209-112D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
Regular price
€64,74
ex VAT
Regular price
Sale price
€64,74
ex VAT
In stock
Price Break
3+
€54,85
4+
€52,63
9+
€51,52
19+
€49,86
49+
€48,75
99+
€45,98
499+
€38,78
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCP
- Bolt Hole Centres:
- 5-3/4 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-3/4 inch |
| H | 2-1/8 inch |
| L | 7-15/32 inch |
| J | 5-3/4 inch |
| A | 2-1/8 inch |
| N | 21/32 inch |
| N<sub>1</sub> | 25/32 inch |
| H<sub>1</sub> | 25/32 inch |
| H<sub>2</sub> | 4-3/16 inch |
| L<sub>1</sub> | 2-3/8 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 4.9 lbs |
