SKU: UCP207-20N-SNR

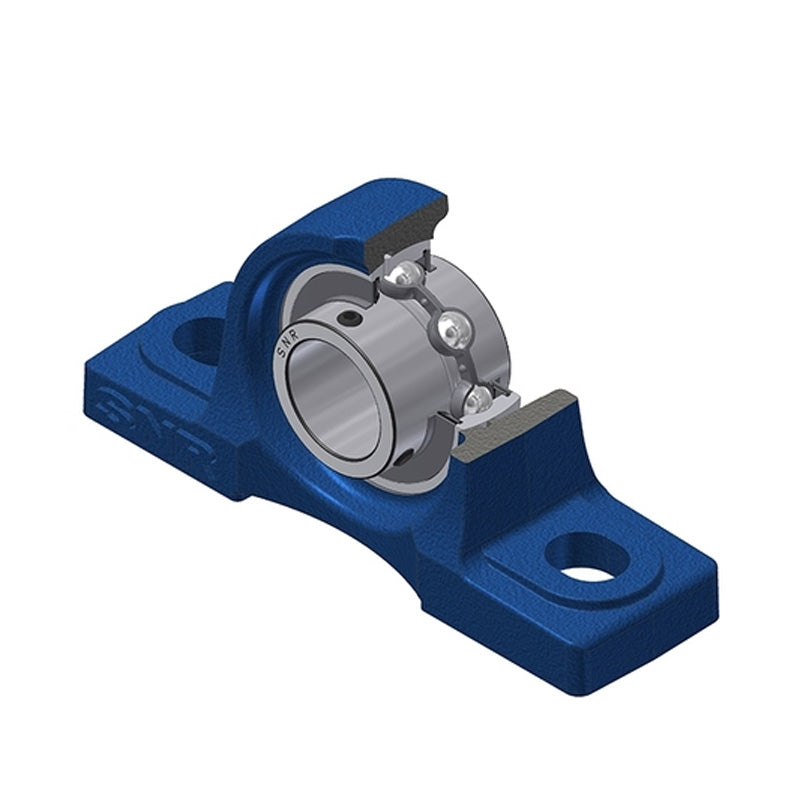

SNR UCP207-20N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing 1-1/4 inch Bore Insert - Allow 2-3 Days
SNR UCP207-20N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing 1-1/4 inch Bore Insert - Allow 2-3 Days
Regular price
€46,60
ex VAT
Regular price
Sale price
€46,60
ex VAT
In stock
Price Break
3+
€39,48
4+
€37,89
9+
€37,09
19+
€35,89
49+
€35,09
99+
€33,10
499+
€27,92
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCP
- Bolt Hole Centres:
- 127mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-1/4 inch |
| A | 48mm |
| A1 | 31mm |
| B | 42.9mm |
| H | 47.6mm |
| H1 | 19mm |
| H2 | 94mm |
| J | 127mm |
| L | 167mm |
| L1 | 54mm |
| N | 17mm |
| N1 | 21mm |
| S | 17.5mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.73 kg |
| Recommended tightening torque for set screw | 8 Nm |
