SKU: UCP.312

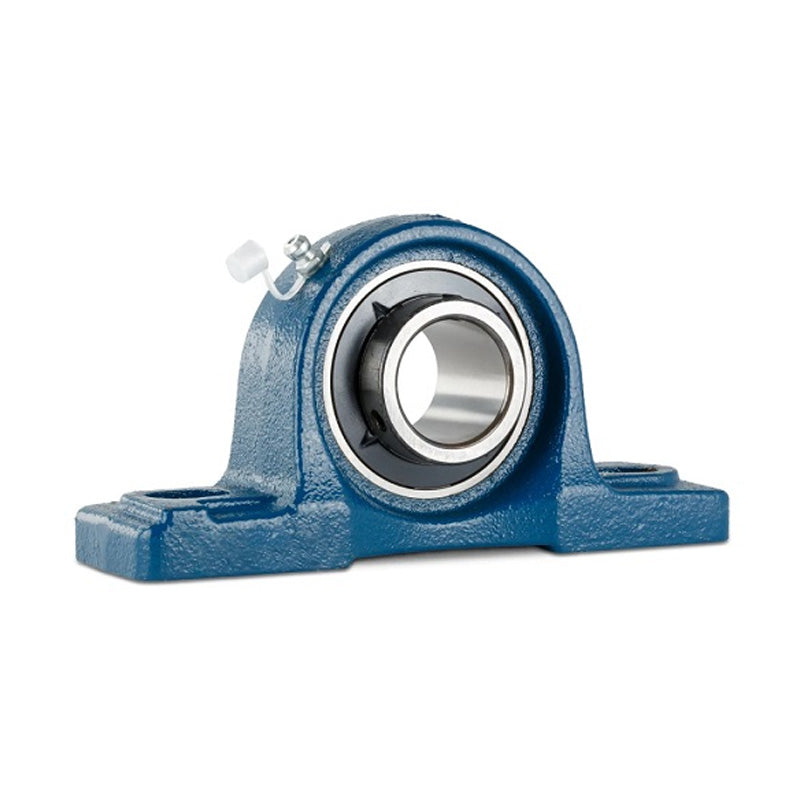

UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
Regular price
€103,16
ex VAT
Regular price
Sale price
€103,16
ex VAT
In stock
Price Break
10+
€91,81
19+
€86,65
29+
€85,62
39+
€84,59
49+
€83,56
74+
€82,53
99+
€77,37
199+
€76,34
249+
€75,31
499+
€74,28
999+
€72,21
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 250mm
Technical
Technical
| d | 60mm |
|---|---|
| h | 85mm |
| a | 330mm |
| e | 250mm |
| b | 85mm |
| s2 | 38mm |
| s1 | 25mm |
| g | 32mm |
| w | 165mm |
| b1 | 71mm |
| n | 26mm |
| Bolt | 20mm |
| Weight | 9.4 kg |
| Dynamic load | 6420 kgf |
| Static load | 4960 kgf |
