SKU: UCLP208

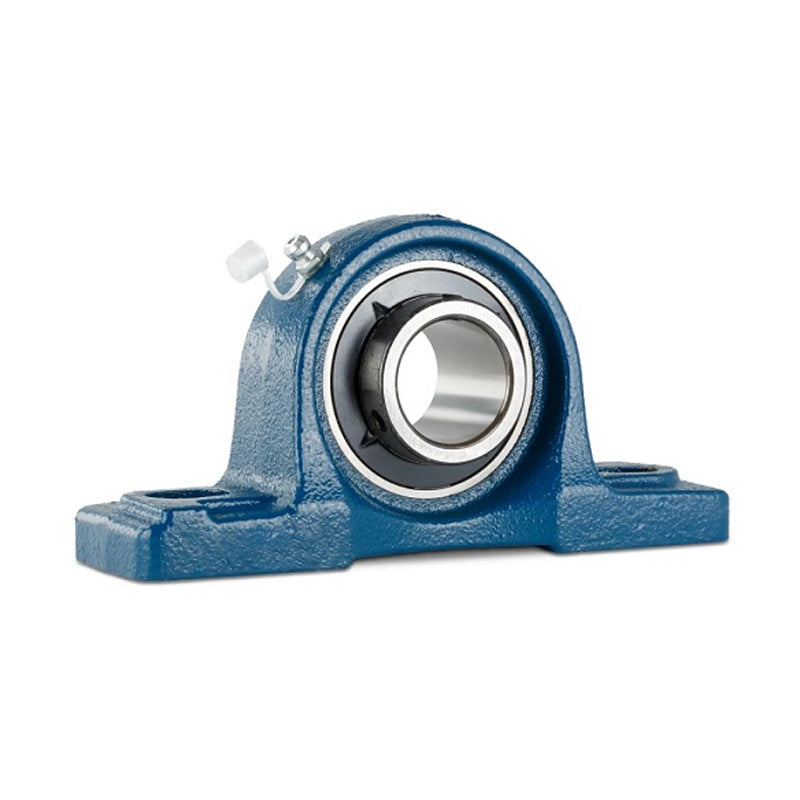

UCLP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Insert
UCLP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Insert
Regular price
€31,01
ex VAT
Regular price
Sale price
€31,01
ex VAT
In stock
Price Break
3+
€23,62
4+
€22,29
9+
€22,03
19+
€21,76
49+
€21,50
99+
€21,23
499+
€19,90
999+
€19,64
1999+
€19,37
2999+
€19,11
4999+
€18,58
Share this product
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCLP
- Bolt Hole Centres:
- 137mm
Technical
Technical
| d | 40mm |
|---|---|
| h | 49.2mm |
| a | 184mm |
| e | 137mm |
| b | 54mm |
| s1 | 17mm |
| s2 | 20mm |
| g | 18mm |
| w | 100mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M14 |
| Bearing no | UC208 |
| Housing no | LP208 |
| Weight | 1.87 kg |
