SKU: UCHA214

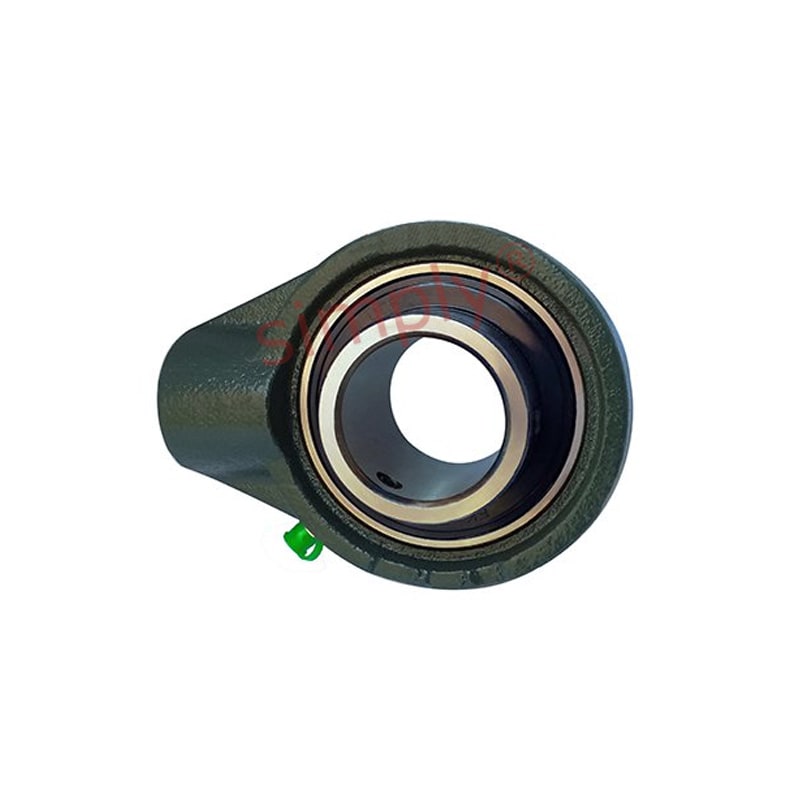

UCHA214 Metric Cast Iron Hanger Bearing Unit with 70mm Bore Insert
UCHA214 Metric Cast Iron Hanger Bearing Unit with 70mm Bore Insert
Regular price
€224,31
ex VAT
Regular price
Sale price
€224,31
ex VAT
In stock
Price Break
10+
€199,64
19+
€188,42
29+
€186,18
39+
€183,93
49+
€181,69
74+
€179,45
99+
€168,23
199+
€165,99
249+
€163,75
499+
€161,50
999+
€157,02
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCHA
Technical
Technical
| d | 70mm |
|---|---|
| h | 117mm |
| w | 200mm |
| b | 166mm |
| c | 9.5mm |
| a | 70mm |
| s | G1-1/2 |
| l | 32mm |
| B | 74.6mm |
| n | 30.2mm |
| Bearing no | UC214 |
| Housing no | HA214 |
| Weight | 5.457 kg |
