SKU: UCHA209-27

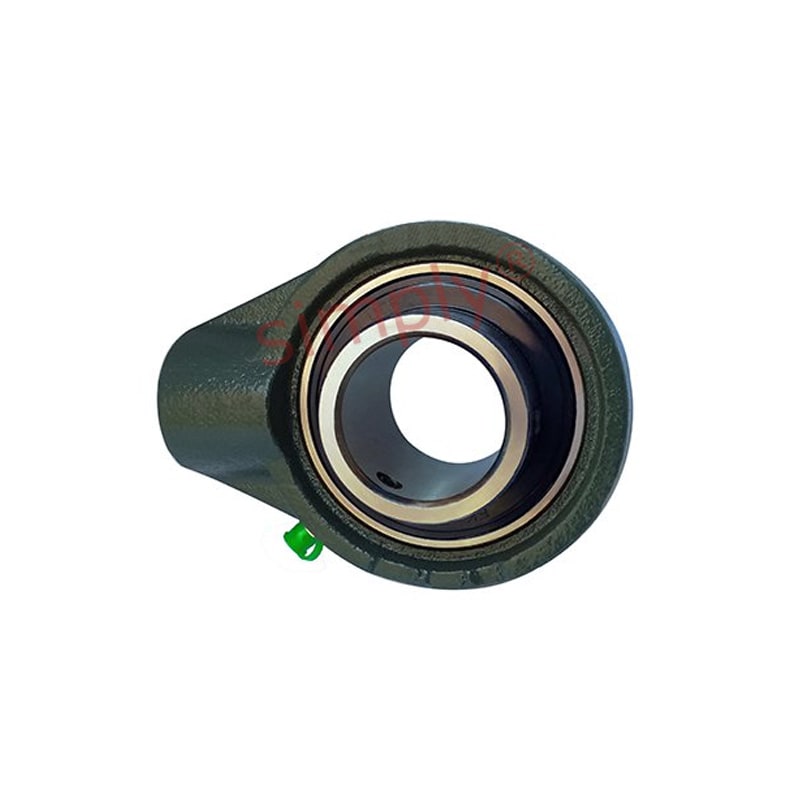

UCHA209-27 Imperial Cast Iron Hanger Bearing Unit with 1-11/16 inch Bore Insert
UCHA209-27 Imperial Cast Iron Hanger Bearing Unit with 1-11/16 inch Bore Insert
Regular price
€41,84
ex VAT
Regular price
Sale price
€41,84
ex VAT
In stock
Price Break
10+
€37,24
19+
€35,15
29+
€34,73
39+
€34,31
49+
€33,89
74+
€33,47
99+
€31,38
199+
€30,96
249+
€30,54
499+
€30,12
999+
€29,29
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UCHA
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| h | 3-15/64 inch |
| w | 5-23/64 inch |
| b | 4-1/4 inch |
| c | 13/64 inch |
| a | 1-57/64 inch |
| s | G1 |
| l | 53/64 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bearing no | UC209-27 |
| Housing no | HA209 |
| Weight | 1.774 kg |
