SKU: UCFLX.07
UCFLX07 Metric Two Bolt Oval Cast Iron Housing with 35mm Bore Insert
UCFLX07 Metric Two Bolt Oval Cast Iron Housing with 35mm Bore Insert
Regular price
€28,32
ex VAT
Regular price
Sale price
€28,32
ex VAT
Equivalent to: MSFT35
In stock
Price Break
3+
€21,56
4+
€20,35
9+
€20,11
19+
€19,86
49+
€19,62
99+
€19,38
499+
€18,17
999+
€17,93
1999+
€17,68
2999+
€17,44
4999+
€16,96
Description
Description
|

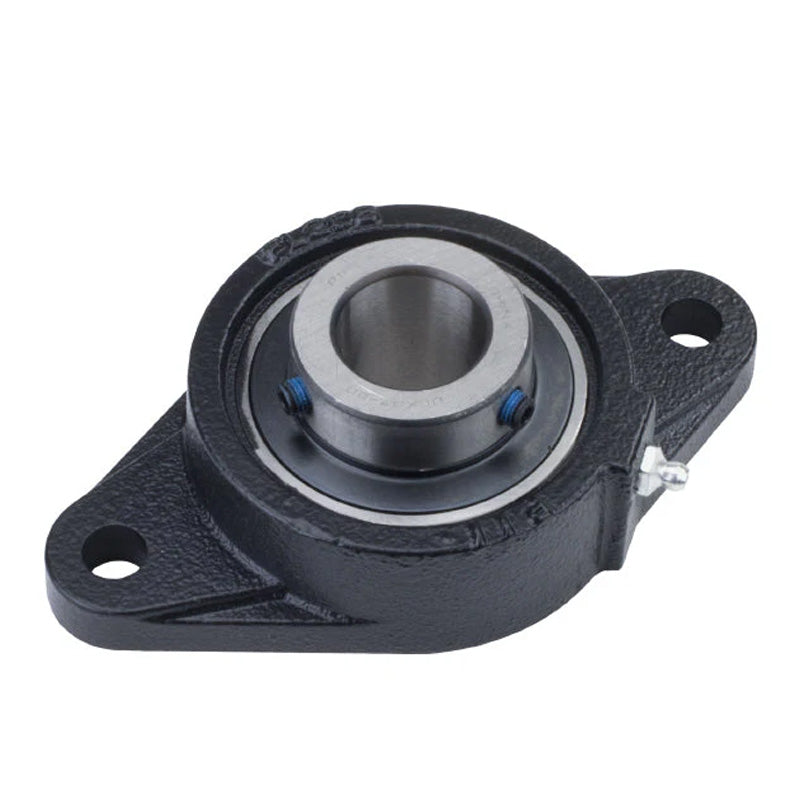

UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 144mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 171mm |
| e | 144mm |
| i | 144mm |
| g | 16mm |
| l | 38mm |
| s | 16mm |
| b | 105mm |
| z | 51.2mm |
| Bi | 49.2mm |
| n | 17.5mm |
| Bolt | M14 |
| Weight | 1.9 kg |
| Dynamic load | 25560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
