SKU: UCFLX.05-16

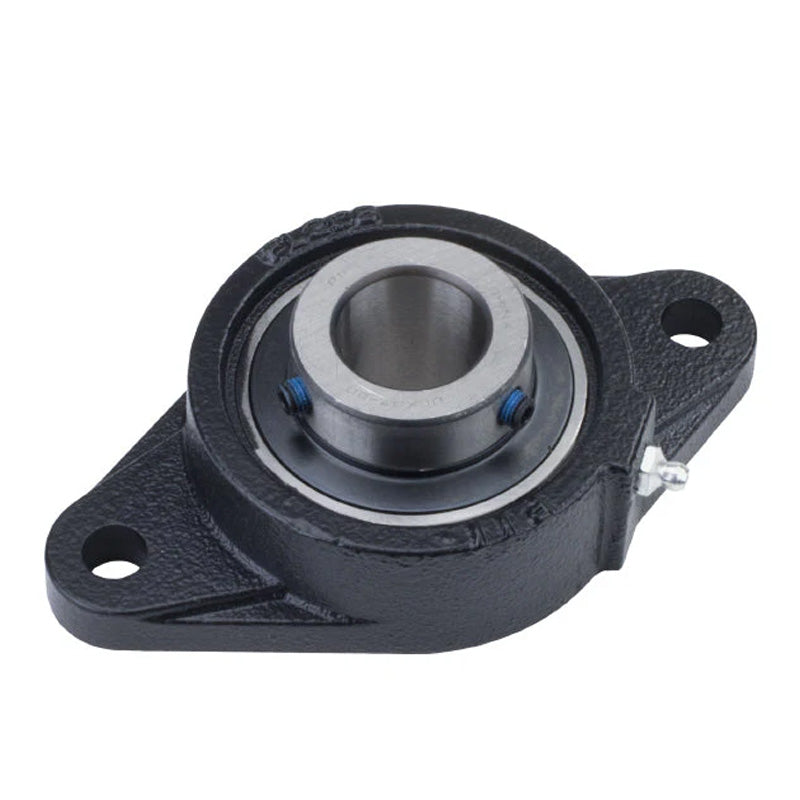

UCFLX05-16 Imperial Two Bolt Oval Cast Iron Housing with 1 inch Bore Insert
UCFLX05-16 Imperial Two Bolt Oval Cast Iron Housing with 1 inch Bore Insert
Regular price
€23,09
ex VAT
Regular price
Sale price
€23,09
ex VAT
In stock
Price Break
3+
€17,58
4+
€16,60
9+
€16,40
19+
€16,20
49+
€16,00
99+
€15,81
499+
€14,82
999+
€14,62
1999+
€14,42
2999+
€14,23
4999+
€13,83
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 117.08mm = 4.609 (4-39/64) inch
Technical
Technical
| d | 1 inch |
|---|---|
| a | 141mm = 5-9/16 inch |
| e | 117mm = 4-39/64 inch |
| i | 117mm = 4-39/64 inch |
| g | 13mm = 1/2 inch |
| l | 30mm = 1-3/16 inch |
| s | 12mm = 15/32 inch |
| b | 83mm = 3-9/32 inch |
| z | 40.2mm = 1-37/64 inch |
| Bi | 38.1mm = 1.5 inch |
| n | 15.9mm = 0.626 inch |
| Bolt | 10mm = 3/8 inch |
| Weight | 1 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
