SKU: UCFLE214-44-SNR

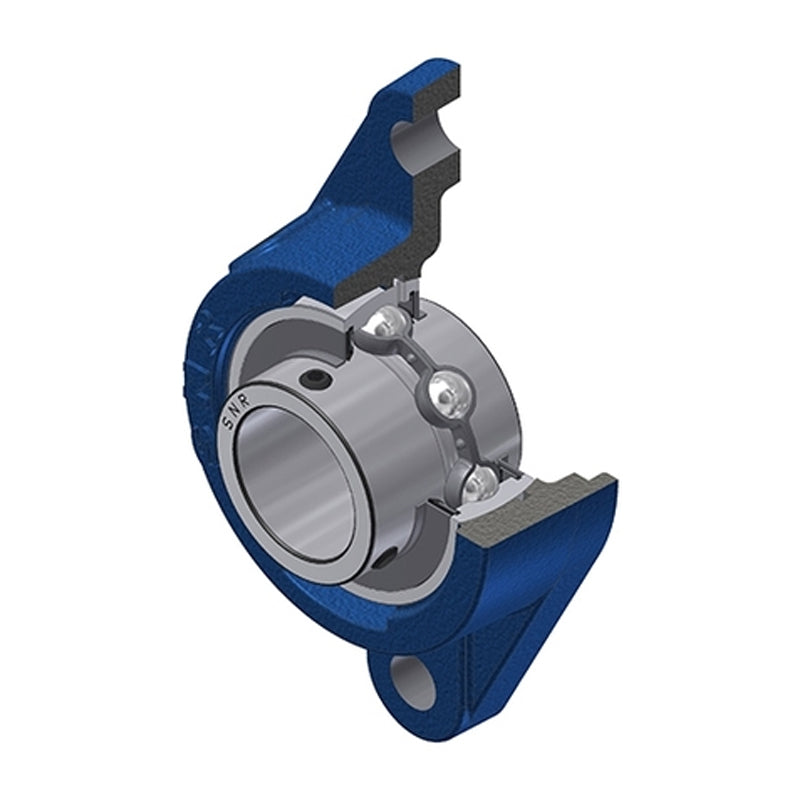

SNR UCFLE214-44 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/4 inch Bore Insert - Allow 2-3 Days

Name: SNR UCFLE214-44 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/4 inch Bore Insert - Allow 2-3 Days
Brand: SNR
SKU: UCFLE214-44-SNR
Price: 181.27 EUR
Availability: InStock

€181,27 ex VAT

Sale Sold out

In stock

Price Break

3+ €153,57

4+ €147,36

9+ €144,26

19+ €139,61

49+ €136,51

99+ €128,75

499+ €108,58

999+ €0,00

1999+ €0,00

2999+ €0,00

4999+ €0,00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

Brand / Quality:: SNR - High Quality
Inside Diameter:: 69.85mm = 2.75 (2-3/4) inch
Style:: UCFLE
Bolt Hole Centres:: 216mm

Technical

---	Dimensions
Shaft diameter d	2-3/4 inch
A	57mm
A1	18mm
A2	82.4mm
B	74.6mm
e	38mm
H	258mm
J	216mm
L	160mm
N	21mm
S	30.2mm
G	R1/8″
---	Load rating
Dynamic load C	62 kN
Static load C0	45 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Recommended tightening torque for set screw	27.1 Nm
Mass	5.46 kg
