SKU: UCFLE211-35-SNR

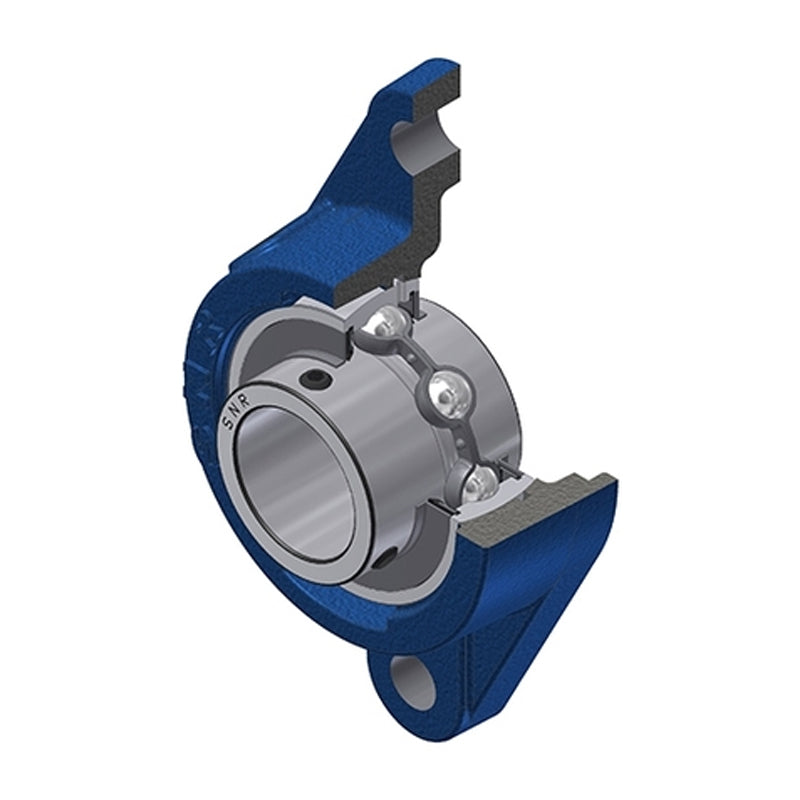

SNR UCFLE211-35 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/16 inch Bore Insert - Allow 2-3 Days
SNR UCFLE211-35 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/16 inch Bore Insert - Allow 2-3 Days
Regular price
€77,69
ex VAT
Regular price
Sale price
€77,69
ex VAT
In stock
Price Break
3+
€65,82
4+
€63,16
9+
€61,83
19+
€59,83
49+
€58,50
99+
€55,18
499+
€46,54
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-3/16 inch |
| A | 45.8mm |
| A1 | 15mm |
| A2 | 64.4mm |
| B | 55.6mm |
| e | 31mm |
| H | 222mm |
| J | 184mm |
| L | 134mm |
| N | 18mm |
| S | 22.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.2 kg |
