SKU: UCFLE206T20-SNR

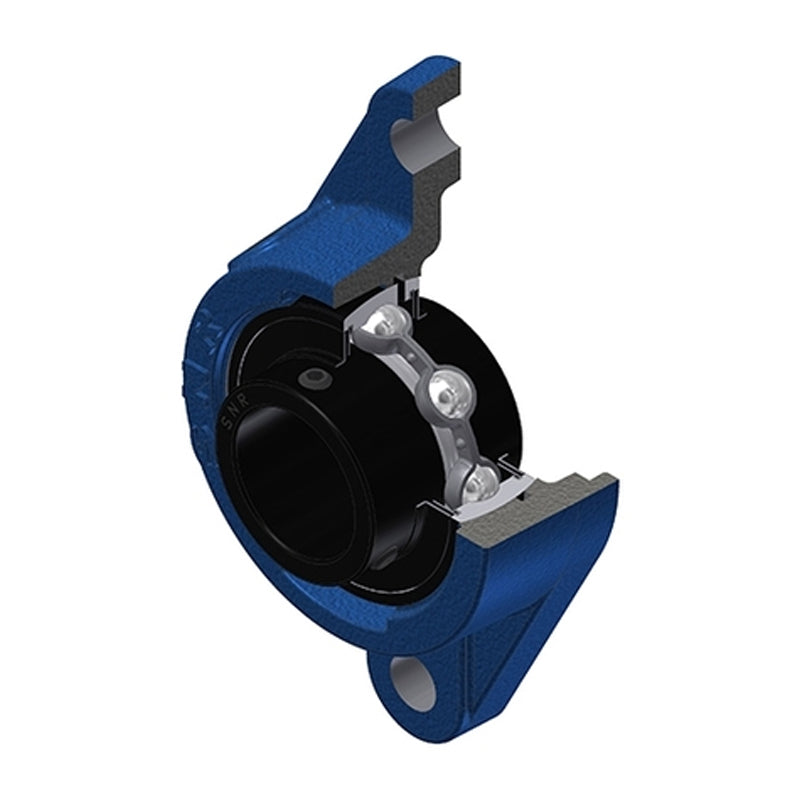

SNR UCFLE206T20 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFLE206T20 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
€77,70
ex VAT
Regular price
Sale price
€77,70
ex VAT
In stock
Price Break
3+
€65,83
4+
€63,17
9+
€61,84
19+
€59,84
49+
€58,51
99+
€55,19
499+
€46,54
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFLE
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 32.1mm |
| A1 | 12mm |
| A2 | 42.2mm |
| B | 38.1mm |
| e | 20mm |
| H | 142mm |
| J | 116.5mm |
| L | 80mm |
| N | 11.5mm |
| S | 15.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.82 kg |
