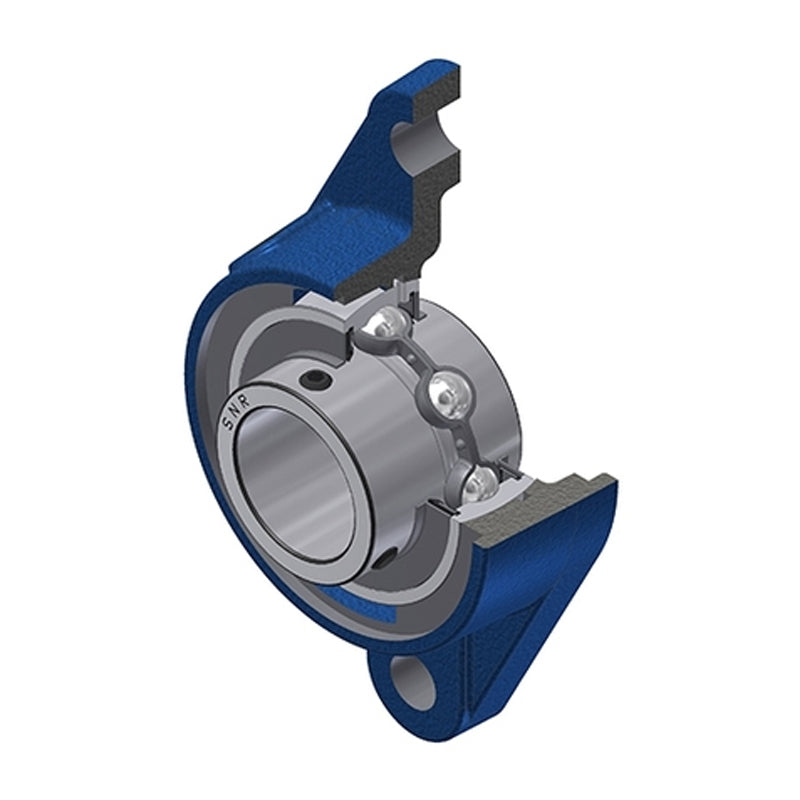

SNR UCFLE205-15N Imperial Two Bolt Oval Cast Iron Flange Housing with 15/16 inch Bore Insert - Allow 2-3 Days
SNR UCFLE205-15N Imperial Two Bolt Oval Cast Iron Flange Housing with 15/16 inch Bore Insert - Allow 2-3 Days
Regular price
€64,70
ex VAT
Regular price
Sale price
€64,70
ex VAT
In stock
Price Break
3+
€54,82
4+
€52,60
9+
€51,49
19+
€49,83
49+
€48,73
99+
€45,96
499+
€38,76
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 15/16 inch |
| A | 29.3mm |
| A1 | 11mm |
| A2 | 38.7mm |
| B | 34mm |
| e | 19mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| S | 14.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.61 kg |
