SKU: UCFL320

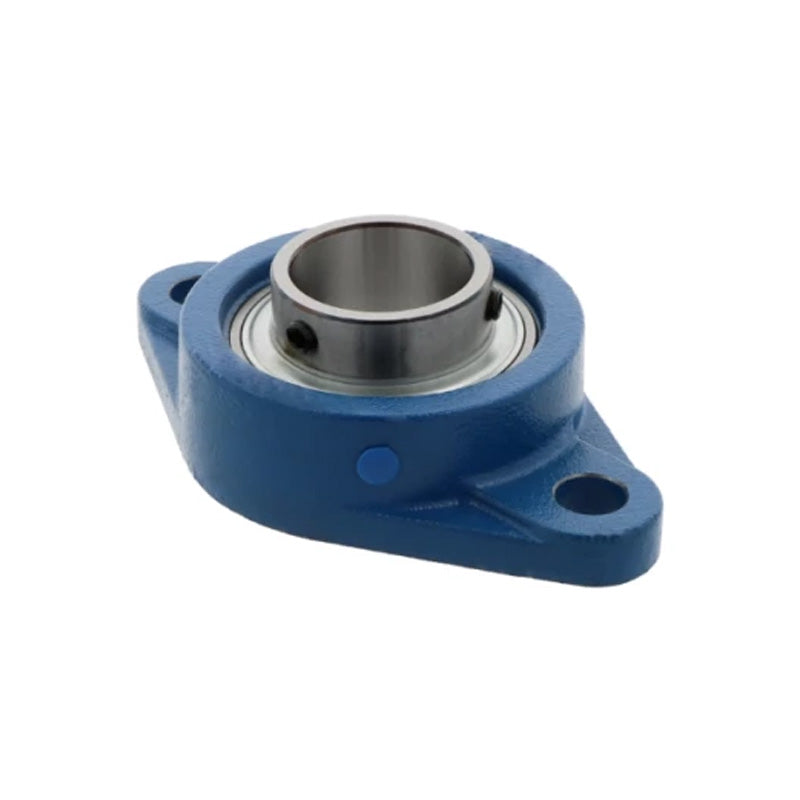

UCFL320 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 100mm Bore
UCFL320 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 100mm Bore
Regular price
€372,43
ex VAT
Regular price
Sale price
€372,43
ex VAT
In stock
Price Break
10+
€331,46
19+
€312,84
29+
€309,12
39+
€305,39
49+
€301,67
74+
€297,94
99+
€279,32
199+
€275,60
249+
€271,87
499+
€268,15
999+
€260,70
Couldn't load pickup availability
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Style:
- UCFL
- Bolt Hole Centres:
- 360mm
Technical
Technical
| d | 100mm |
|---|---|
| a | 440mm |
| e | 360mm |
| i | 59mm |
| g | 40mm |
| l | 94mm |
| s | 44mm |
| b | 270mm |
| z | 125mm |
| B | 108mm |
| n | 42mm |
| Bolt size | M39 |
| Bearing no | UC320 |
| Housing no | FL320 |
| Weight | 25.95 kg |
