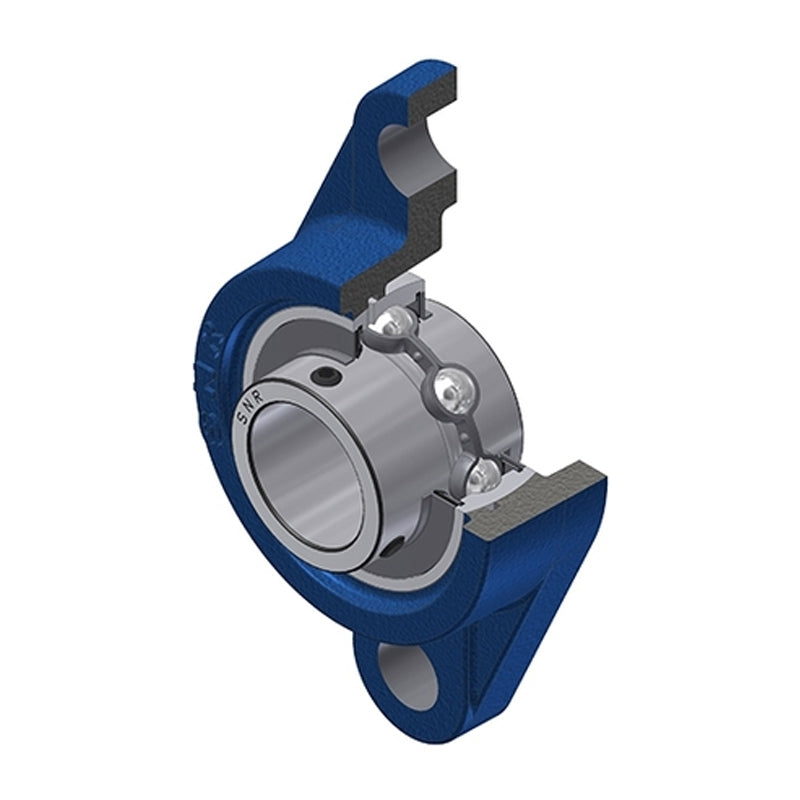

SNR UCFL315 Metric Two Bolt Oval Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
SNR UCFL315 Metric Two Bolt Oval Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
Regular price
€336,68
ex VAT
Regular price
Sale price
€336,68
ex VAT
In stock
Price Break
3+
€285,23
4+
€273,70
9+
€267,94
19+
€259,30
49+
€253,54
99+
€239,13
499+
€201,68
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCFL
- Bolt Hole Centres:
- 260mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 66mm |
| A1 | 30mm |
| A2 | 89mm |
| B | 82mm |
| e | 39mm |
| H | 320mm |
| J | 260mm |
| L | 195mm |
| N | 35mm |
| S | 32mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 113.36 kN |
| Static load C0 | 76.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 42 Nm |
| Mass | 9.47 kg |
