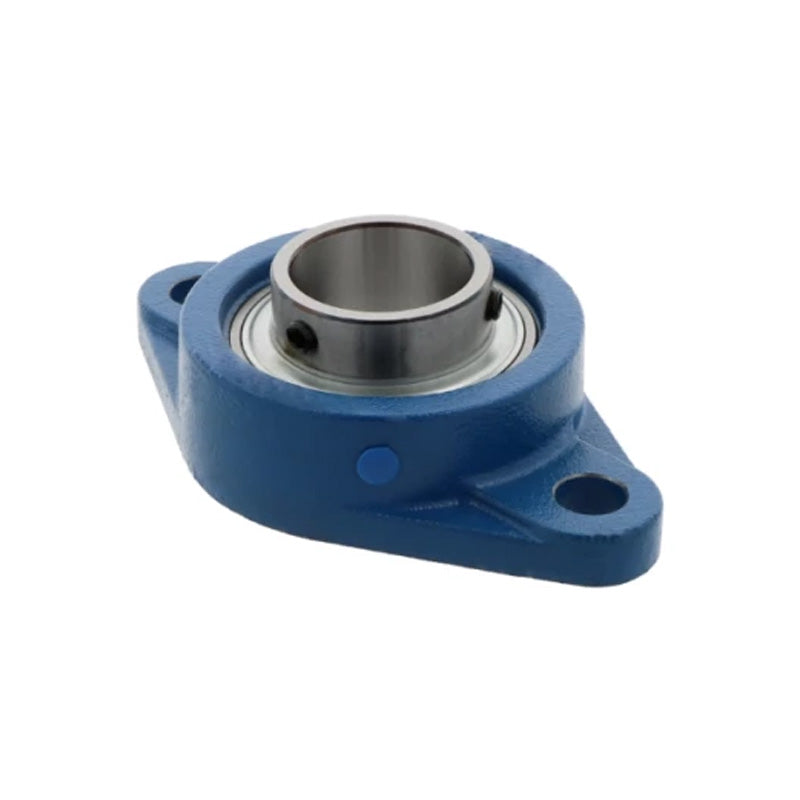

UCFL313 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 65mm Bore
UCFL313 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 65mm Bore
Regular price
€131,36
ex VAT
Regular price
Sale price
€131,36
ex VAT
In stock
Price Break
10+
€116,91
19+
€110,34
29+
€109,03
39+
€107,72
49+
€106,40
74+
€105,09
99+
€98,52
199+
€97,21
249+
€95,89
499+
€94,58
999+
€91,95
Couldn't load pickup availability
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCFL
- Bolt Hole Centres:
- 240mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 295mm |
| e | 240mm |
| i | 33mm |
| g | 25mm |
| l | 58mm |
| s | 31mm |
| b | 175mm |
| z | 78mm |
| B | 75mm |
| n | 30mm |
| Bolt size | M27 |
| Bearing no | UC313 |
| Housing no | FL313 |
| Weight | 7.377 kg |
