SKU: UCFL310-SNR

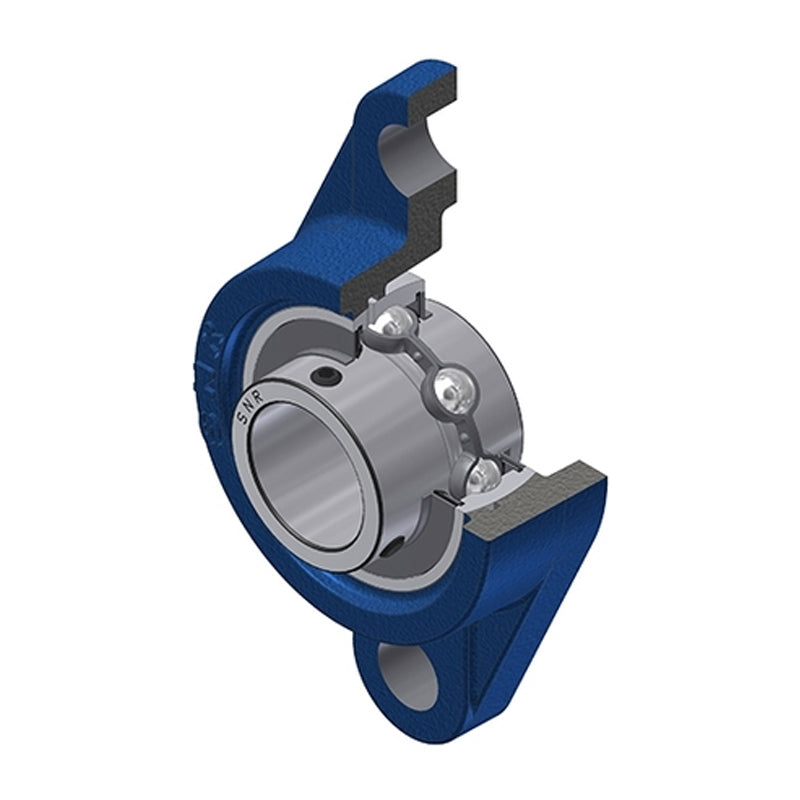

SNR UCFL310 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
SNR UCFL310 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
€95,75
ex VAT
Regular price
Sale price
€95,75
ex VAT
In stock
Price Break
3+
€72,92
4+
€68,83
9+
€68,01
19+
€67,19
49+
€66,37
99+
€65,55
499+
€61,45
999+
€60,63
1999+
€59,81
2999+
€58,99
4999+
€57,36
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFL
- Bolt Hole Centres:
- 187mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 48mm |
| A1 | 19mm |
| A2 | 67mm |
| B | 61mm |
| e | 28mm |
| H | 240mm |
| J | 187mm |
| L | 140mm |
| N | 25mm |
| S | 22mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 37.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 3.98 kg |
