SKU: UCFL306

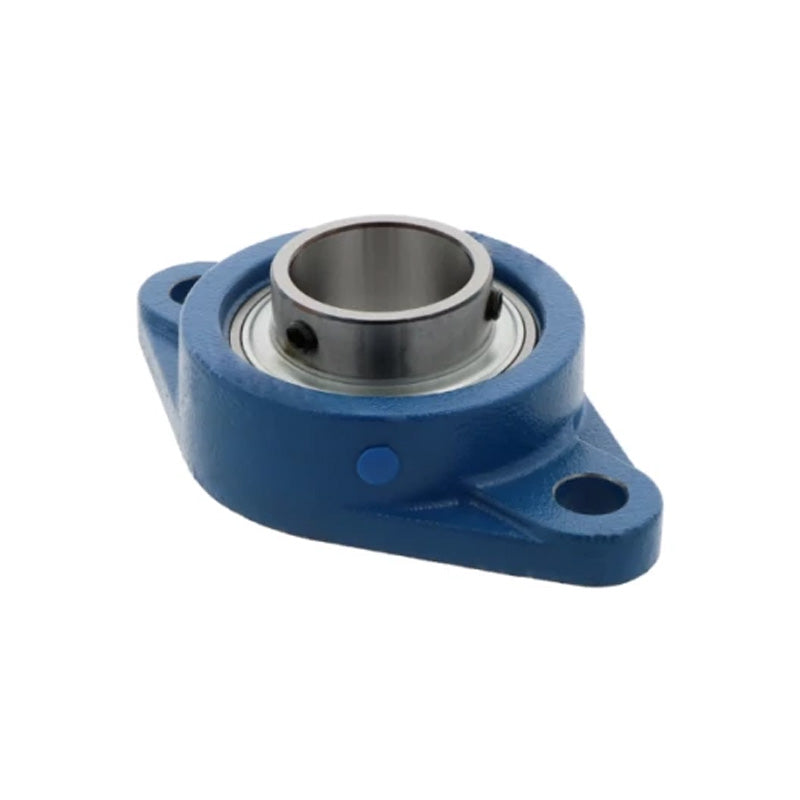

UCFL306 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
UCFL306 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
Regular price
€21,17
ex VAT
Regular price
Sale price
€21,17
ex VAT
In stock
Price Break
3+
€16,13
4+
€15,22
9+
€15,04
19+
€14,86
49+
€14,68
99+
€14,50
499+
€13,59
999+
€13,41
1999+
€13,23
2999+
€13,05
4999+
€12,68
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCFL
- Bolt Hole Centres:
- 134mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 180mm |
| e | 134mm |
| i | 18mm |
| g | 15mm |
| l | 32mm |
| s | 23mm |
| b | 90mm |
| z | 44mm |
| B | 43mm |
| n | 17mm |
| Bolt size | M20 |
| Bearing no | UC306 |
| Housing no | FL306 |
| Weight | 1.365 kg |
