SKU: UCFL208-25-SNR

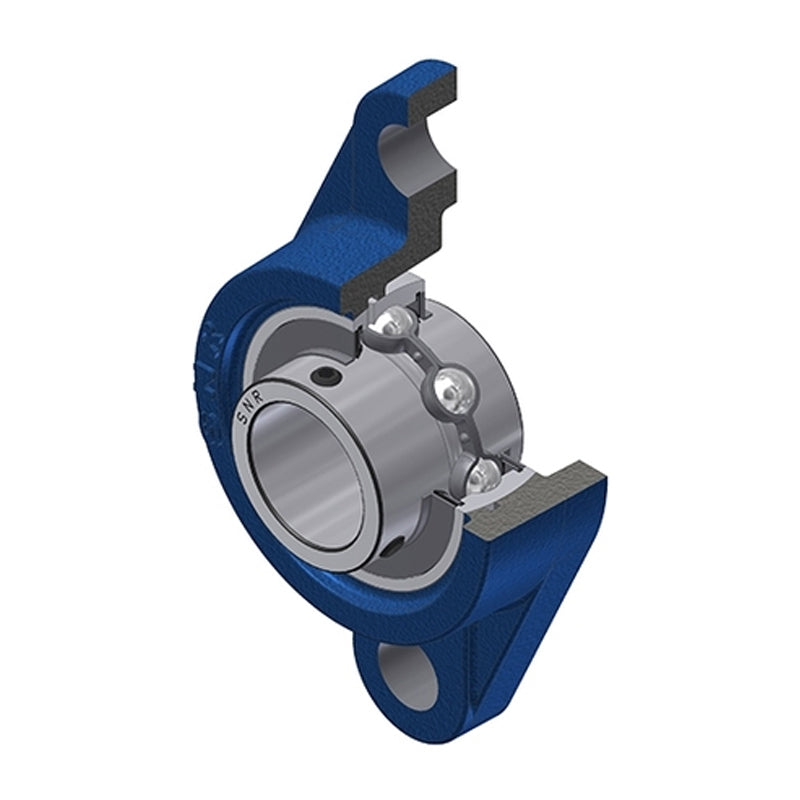

SNR UCFL208-25 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-9/16 inch Bore Insert - Allow 2-3 Days
SNR UCFL208-25 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-9/16 inch Bore Insert - Allow 2-3 Days
Regular price
€51,76
ex VAT
Regular price
Sale price
€51,76
ex VAT
In stock
Price Break
3+
€43,85
4+
€42,08
9+
€41,19
19+
€39,86
49+
€38,98
99+
€36,76
499+
€31,00
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-9/16 inch |
| A | 36mm |
| A1 | 14mm |
| A2 | 51.2mm |
| B | 49.2mm |
| e | 21mm |
| H | 175mm |
| J | 144mm |
| L | 100mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.49 kg |
