SKU: UCFL208-108D1-NTN

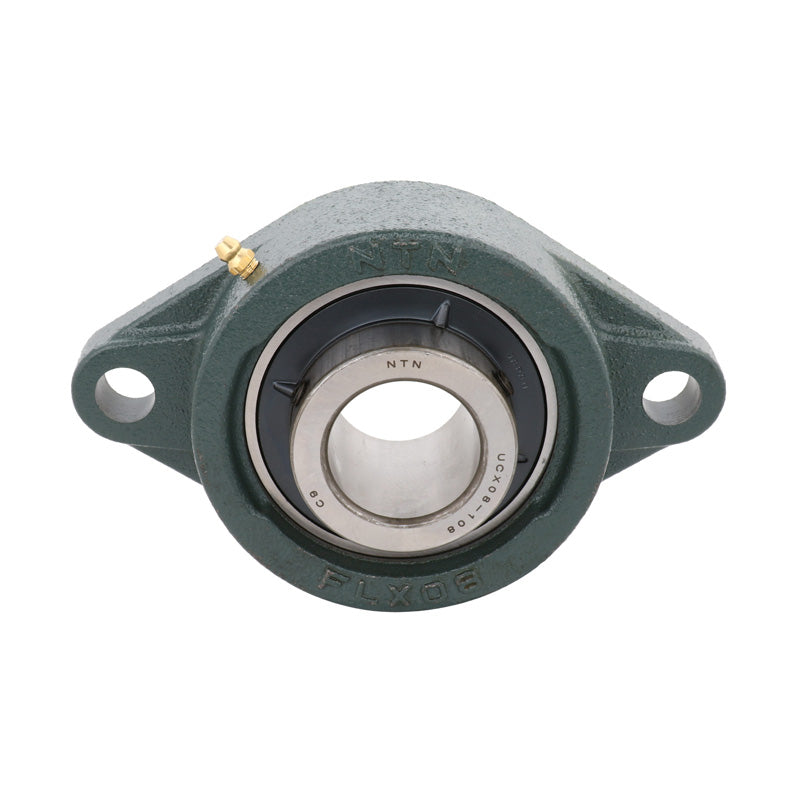

NTN UCFL208-108D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
NTN UCFL208-108D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
€64,69
ex VAT
Regular price
Sale price
€64,69
ex VAT
In stock
Price Break
3+
€54,81
4+
€52,59
9+
€51,48
19+
€49,82
49+
€48,72
99+
€45,95
499+
€38,75
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 5-43/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/2 inch |
| H | 6-7/8 inch |
| J | 5-43/64 inch |
| A<sub>2</sub> | 53/64 inch |
| A<sub>1</sub> | 19/32 inch |
| A | 1-13/32 inch |
| N | 5/8 inch |
| L | 3-15/16 inch |
| A<sub>0</sub> | 2-1/64 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 3.3 lbs |
