SKU: UCFL.215

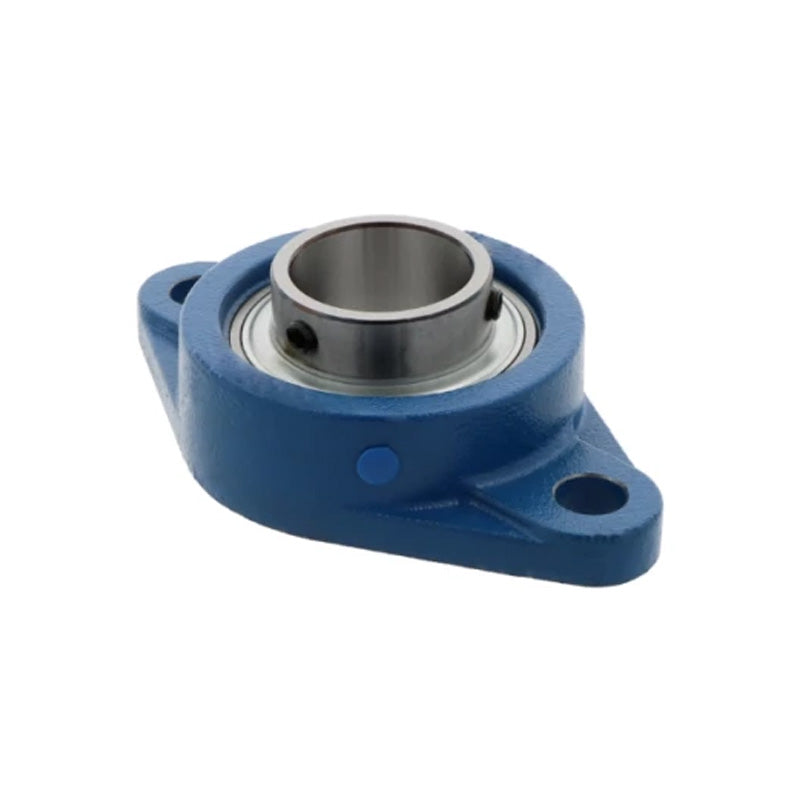

UCFL215 Metric Two Bolt Oval Cast Iron Flange Housing with 75mm Bore Insert
UCFL215 Metric Two Bolt Oval Cast Iron Flange Housing with 75mm Bore Insert
Regular price
€78,16
ex VAT
Regular price
Sale price
€78,16
ex VAT
In stock
Price Break
3+
€59,52
4+
€56,18
9+
€55,51
19+
€54,84
49+
€54,17
99+
€53,50
499+
€50,16
999+
€49,49
1999+
€48,82
2999+
€48,15
4999+
€46,82
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UCFL
- Bolt Hole Centres:
- 225mm
Technical
Technical
| d | 75mm |
|---|---|
| a | 275mm |
| e | 225mm |
| i | 35mm |
| g | 20mm |
| L | 57mm |
| S | 23mm |
| b | 165mm |
| z | 79.5mm |
| B1 | 77.8mm |
| n | 33.3mm |
| Bolt Size | M20 |
| Weight | 6.4 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
