SKU: UCFL.213-40

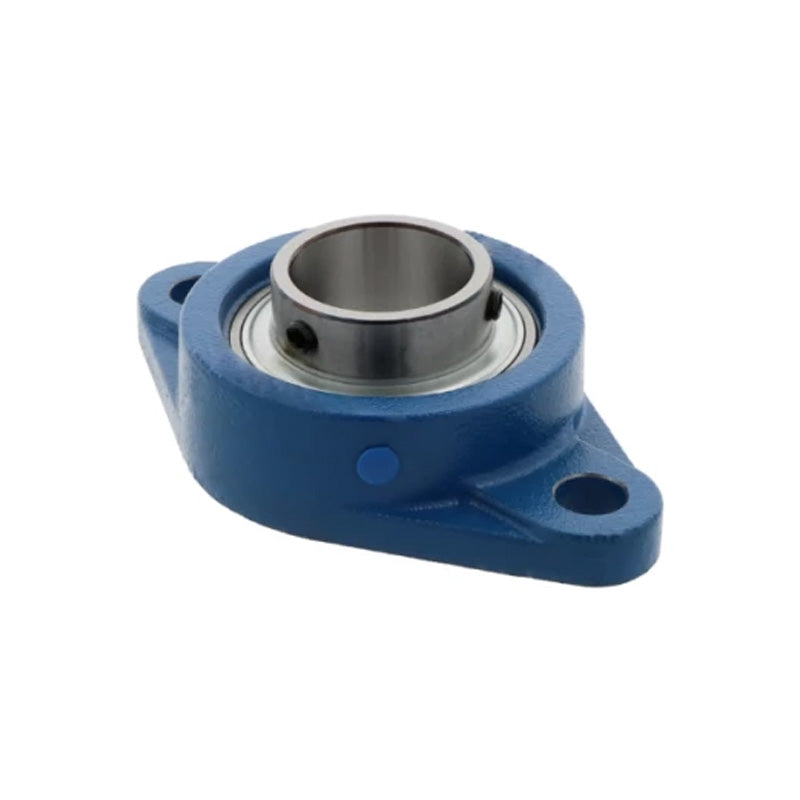

UCFL213-40 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/2 inch Bore Insert
UCFL213-40 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/2 inch Bore Insert
Regular price
€148,65
ex VAT
Regular price
Sale price
€148,65
ex VAT
In stock
Price Break
3+
€113,21
4+
€106,85
9+
€105,58
19+
€104,31
49+
€103,04
99+
€101,76
499+
€95,40
999+
€94,13
1999+
€92,86
2999+
€91,59
4999+
€89,04
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| a | 258mm |
| e | 210mm |
| i | 30mm |
| g | 20mm |
| L | 501mm |
| S | 23mm |
| b | 155mm |
| z | 69.7mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt Size | M20 |
| Weight | 5.1 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
